Chapter 8. Cable schematic

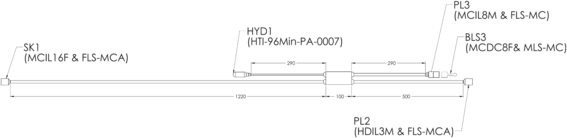

The interconnection cable assembly is part number CAS-OBS-0033.
Connector | Description |
SK1 | Birns Aquamate 16-way female mini inline connector (MCIL16F) with locking sleeve (FLS-MCA) |
HYD1 | Scorpion Oceanics Hydrophone with pre-amp (HTI-96MIN-PA-0007) |
PL2 | Birns Aquamate 3-way male heavy-duty inline connector (HDIL3M) with locking sleeve (FLS-MCA) |
PL3 | Birns Aquamate 8-way male mini inline connector (MCIL8M) with female locking sleeve (MLS-MC) |
Function | SK1 pin | HYD1 pin | PL2 pin | PL3 pin |
Digital ground | 1 | 3 | ||
1 PPS from GPS | 2 | 4 | ||
RS232 to GPS | 3 | 5 | ||
RS232 from GPS | 4 | 6 | ||
+5 Volt supply for GPS | 5 | 2 | ||
RS232 RxD | 6 | 7 | ||
RS232 TxD | 7 | 8 | ||
V+ supply | 8 | 1 | ||
0 Volt supply | 9 | 3 | ||
Hydrophone power | 10 | 10 | ||
Hydrophone signal | 11 | 11 | ||
Hydrophone ground | 13 | 13 |
SK1 – MCIL16F female mating face | PL2 – HDIL3M male mating face | PL3 – MCIL8M male mating face |
|
|
|
