Chapter 8. Appendices
8.1 Appendix A: Relay box pin-outs
When Network Trigger is used with Güralp's SCADA Relay Control Box, part number CMG-STA-RLY0, detected events can trigger the operation of four independent relays.
8.1.1 Output connections

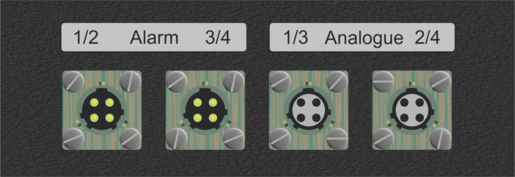

The output connections are located on the bottom face of the relay box. The pin-outs are described in the following section. Mating connectors are provided with the unit to allow you to connect your own equipment.
The two “Alarm” plugs provide access to four pairs of normally open relays. The two “Analogue” sockets are not used by the Network Trigger application.
8.1.2 Alarm (relay) outputs 1/2 and 3/4
These are standard 4-pin “mil-spec” plugs, conforming to MIL-DTL-26482 (formerly MIL-C-26482). A typical part-number is 02E-08-04P although the initial “02E” varies with manufacturer. Suitable mating connectors are provided and have part-numbers like ***-08-04S. They are also available from Amphenol, ITT Cannon and other manufacturers. |
|
8.1.2.1 Alarm output 1/2
Pin | Function |
A | GUI Digital output 1 - normally open relay contact to pin D |
B | GUI Digital output 2 - normally open relay contact to pin C |
C | GUI Digital output 2 - normally open relay contact to pin B |
D | GUI Digital output 1 - normally open relay contact to pin A |
8.1.2.2 Alarm output 3/4
Pin | Function |
A | GUI Digital output 3 - normally open relay contact to pin B |
B | GUI Digital output 3 - normally open relay contact to pin A |
C | GUI Digital output 4 - normally open relay contact to pin D |
D | GUI Digital output 4 - normally open relay contact to pin C |
| Wiring details for the compatible socket, ***-08-04S, as seen from the cable end. |
8.1.3 Analogue outputs
These outputs are unused by Network Trigger.
8.2 Appendix B - Revision history
13 September 2011 | A | New document |
24 October 2011 | B | Updated screen shots Added status colour description |
21 January 2014 | C | Updated to include changes to version 1.01 of the application |
14 June 2014 | D | Added relay box details |
18 March 2016 | Facelift with no significant content changes |
