Affinity password reset procedure

This reset procedure can be useful if the root password has been forgotten. If this procedure is not able to reset the password on your unit, then the unit must be returned to Güralp Systems for re-flash. Please contact for details and to arrange an RMA Return Material Authorisation. An RMA is permission to return goods for any reason. Our Goods-In team may refuse to accept any item received without an RMA number clearly marked on the outer packaging so, please, always ensure that you have an RMA before despatching anything to us. For more details, please see our Warranty and Repairs policy.

Scope

  • Affinity
Affinity This procedure applies to Affinity digitisers only.
  • EAM
EAM For EAMs, please see the EAM password reset procedure
  • DM24S3EAM
  • DM24S3AM
  • DM24S6EAM
  • DM24S6AM
DM24 in a metal cylindrical case
or
DM24 in a peli-case
For DM24SxEAM and DM24SxAM digitisers, please see the EAM password reset procedure
  • NAM MkⅡ
NAM Mark 2 For NAM MkⅡs, please see the NAM Mk2 password reset procedure
  • NAM MkI
NAM Mark 1 For legacy NAMs and NAM64s, please see the legacy NAM and NAM64 password reset procedure

Preparation

Equipment required:

Physical access to the unit will be required.

Preparing scream.ini

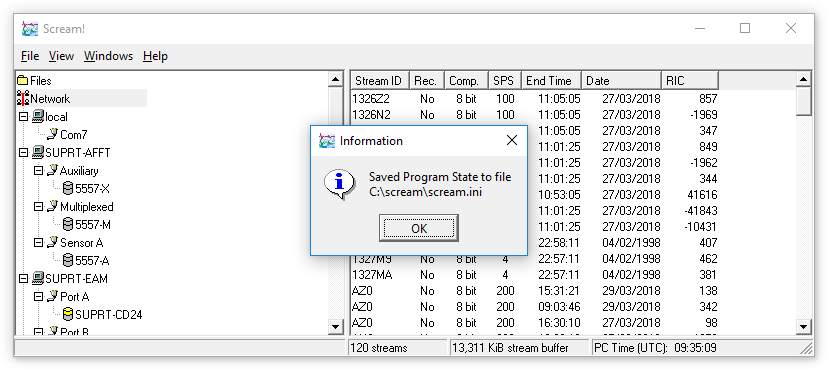

The procedure requires some text to be entered very quickly. The simplest way to achieve this is to program the function keys in Scream's in-built terminal emulator to generate the strings required. To do this, open Scream and select _File → S_ave Program State. Note the location of the scream.ini file, as shown in the resulting dialogue box:

Close Scream and then open scream.ini in your favourite text editor. (Güralp recommend Notepad++Notepad++ is a free (both as in “free speech” and also as in “free beer”) and highly-recommended text-editor, source-code editor and Notepad replacement that supports several languages. It can be downloaded from The Notepad++ web site. for windows and geditgedit is the GNU text editor. It is provided as standard in many Linux distributions. See The Gedit page on the Gnome wiki for more information. for Linux).

Locate the section marked [SoftKeys]. If you have never used Scream's programmable function keys, the entries in this section will all have null right-hand sides. If this is not the case, copy the current values to a back-up file and then change the first three key entries to read:

[SoftKeys] F2=fishsoup F3=setenv bootargs "quiet service" F4=run nor_boot ⋮

Save the file

Identifying the COM port

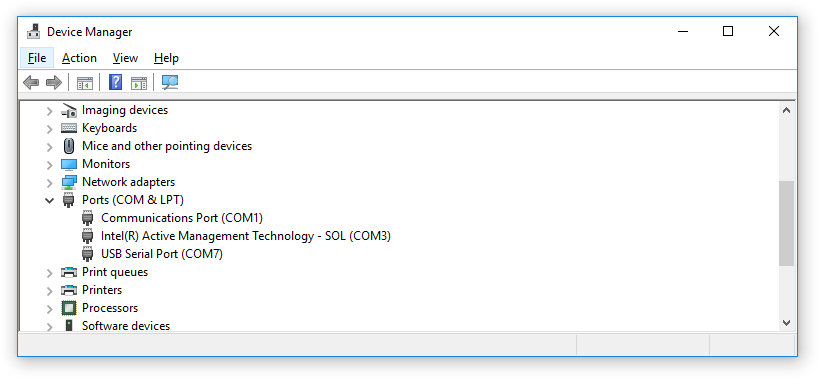

If your PC/laptop has a serial port, it should be labelled as COM1 or COM2. If you are using a USB-to-serial adaptor, you need to identify which COM port is allocated to it. To to this, open Windows Device Manager, scroll down to the "Ports (COM and LPT)" sub-tree and click the right-arrow next to it () to open and expand the sub-tree. Plug in the USB-to-serial adaptor: within a second or so, you should see an extra item appear. Note the COM port number allocated to this new entry. In the example below, it is COM7 (labelled USB Serial Port (COM7)".

Configuring the emulator

If you are using a USB-to-serial adaptor, ensure that it is plugged in.

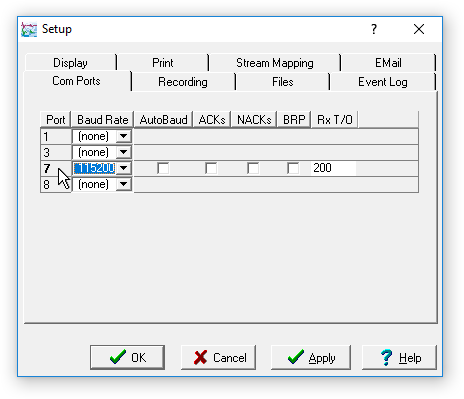

Open Scream and select _File → _Setup from the main menu. Select the "Com Ports" tab of the dialogue. Locate the entry corresponding to the connection to your Affinity, set the Baud rate to 115,200 and clear all the check-boxes, as shown:

Now double-click the number at the left-hand end of the relevant row. Scream's Terminal Emulator window will open.

Booting

Apply power to the Affinity. Around 15 lines of output will appear almost immediately, ending with the line "Enter enable string to access bootloader".

As soon as you see this, key f2. This will automatically type the correct "enable string", although it will not be echoed to the screen.

Wait half a second and then key f3. Wait another half second and then key f4. These two keystrokes send commands which configure the boot-loader and then instruct the Affinity to boot in service mode.

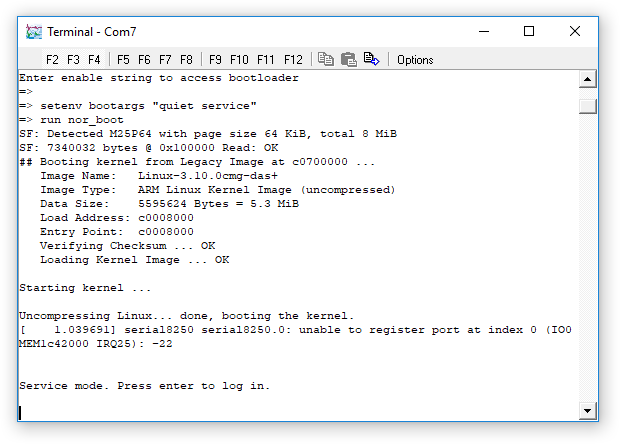

The Affinity will generate some output as it boots, ending with:

Immediately key enter and the system will print the service prompt:

service / #
If you do not see this output, power-cycle the Affinity and try again. The most common problem is not reacting quickly enough to the prompts.

Changing the root password for logins

It is not generally possible to recover the root password, but it can be set back to the factory default, and then, after logging in with this password, changed again to something secure. To do this, enter the following commands:

ubiattach /dev/ubi_ctrl -m 1 mount -t ubifs /dev/ubi0_0 /mnt cd /mnt/etc cp shadow shadow.bak.local sed -i shadow -e '/^root:/s/.*/root:$1$SHR2tXKJ$9GLrxQtEihf3NksjV82Nj\/:14666:0:99999:7:::/' cd lighttpd cp htdigest.local htdigest.bak.local sed -i htdigest.local -e '/^root:/s/.*/root:Platinum web authentication:9bba7155c66fbd2740339df96f507ebd/' cd / umount /mnt
These commands must be entered exactly or your Affinity may become unusable. We recommend that you use copy-and-paste rather than trying to transcribe them manually.

Power-cycle the Affinity and allow it to boot normally. It should now be possible to log in, using either the web interface or the command line, using the user-name root and password .

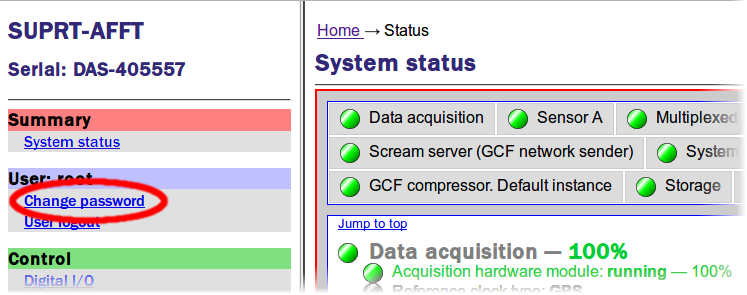

Once logged in, using either the web interface or the command line, change the root password to something secure. From the web interface, visit Change password from the User: root menu.

If you prefer the command line, use the command passwd and follow the prompts.

Do not connect the unit to the Internet without first changing the root password. Strong passwords are essential for Internet-connected systems.
