Firmware for the Güralp DM24 Mk3

Güralp DM24 digitisers manufactured after 2005 are of the Mk3 type. Firmware for these modules has a version number above v.100.

If you are visiting this page to download firmware to address the GPS WNRO problem, please click here to visit the special WRNO firmware download page instead, where you will find a simpler, more targeted procedure.

The digitiser has three firmware components, which can be updated separately: the main system program, the DSP code and the boot loader. The .zip files on this page each contain all three of these files. If the bootloader in use is not the latest version for the required firmware (i.e. bootloader 3.02 for v.107 firmware and bootloader 130 for v.103 firmware), it should be upgraded first.

To find out what firmware version you are currently using, right-click on the digitiser's icon (not the Local or the Comxx icons) in Scream!’s main window and select Configure from the pop-up menu. This will open the Configuration setup window. The version number is given in the Software revision box.

V.106 firmware has been deprecated because it does not support the latest Güralp GPS receivers. It will no longer be maintained. All users running v.106 are advised to upgrade to the latest v.107 build. This requires the latest v.3 boot-loader and, if you change the boot-loader, you need to reload the system code and DSP code. This means that a complete upgrade of all firmware components, starting with the boot-loader, is required.
If you are upgrading from either

it is necessary to run a command in order to reset certain system timing parameters. Failure to do this can compromise the accuracy of data time-stamps. After the upgrade is complete, allow the system to boot normally and then copy and paste the command below to the command-line of the digitiser, and then reboot the unit. This command sets a number of values in the non-volatile configuration memory and only needs to be executed once per system.

Firmware for units without USB support

This firmware should also be used for all instruments and data acquisition systems with embedded DM24 digitisers.

Download the latest v.107 DM24 Mk3 firmware, a 276K .zip file including:
  • system program v.107 build 29
  • boot loader v.30 build 02
  • DSP code v.10 build 91
photo of DM24 with USB support

Latest firmware for units with USB support

DM24s with USB support have a type A USB socket under the lid, as shown in the illustration to the right. These units need different firmware to all other DM24s:

Download the latest v.103 DM24 Mk3 firmware, a 181K .zip file including:
  • system program v.103 build 82
  • boot loader v.1 build 30
  • DSP code v.10 build 71

Earlier versions

Earlier versions of the DM24 Mk3 firmware, for testing or reference, may be downloaded from: the DM24 Mk3 download directory.

Upgrade instructions

There are two ways to upgrade a DM24: automatic and manual. You should use the automatic method if you are upgrading any of the following:

If you are upgrading one of the systems listed above, follow the instructions under "Automatic Upgrades", below.

Only if you do not have access to an EAM and wish to upgrade a stand-alone DM24 or a DM24 embedded in a *TD instrument, please skip to "Upgrading without an EAM".

Automatic Upgrades

If you have an EAM or a system which contains an EAM, the EAM can be used to automate firmware upgrades of attached or integrated digitisers. This is the easiest and safest way to upgrade a DM24.

You should also use this method if you have a DM24SxEAM, a DAS-Sx, a 3TDE, a 40TDE or a 5TDE instrument.

The latest version of Platinum software always includes the latest DM24 firmware so, first, ensure that your EAM's firmware is up-to-date - see the release notes for Platinum firmware for details. Connect your DM24 to the EAM if necessary and then, from the web interface, visit the configuration page for the digitiser. If an upgrade is available, this page will notify you and a check-box near the bottom of the page will allow you to upgrade the firmware on the DM24 when the page is submitted.

If you prefer to use the EAM's command line, please see section 8.2.3 of the Platinum manual for details of the dm24-upgrade command-line tool.

Upgrading without an EAM

Loading firmware takes place in the bootloader environment, which does not properly support 230,400 Baud operation. There have also been rare reports of upgrades failing at other, high Baud rates. If Port 0 is set to a line speed higher than 38,400 Baud, we recommend reducing the line speed to at most 38,400 Baud before proceeding. Both ends of the serial link need to run at the same speed so you may also have to reconfigure Scream or your terminal emulator. The line speed can be safely reset to the original rate after the upgrade.

You can update the digitiser firmware using any terminal program which supports the X-modem protocol, such as minicom (for Linux users), ExtraPuTTYExtraPuTTY is an extension to Simon Tatham's free (both as in “free speech” and also as in “free beer”) and highly-recommended PuTTY software, an SSH client, telnet client and serial terminal emulator that runs under Windows and Linux. In addition to all the features of PuTTY, ExtraPuTTY provides x-modem, y-modem and z-modem file transfers over serial links. ExtraPuTTY can be downloaded from SourceForge's ExtraPuTTY page. or Scream!.

To install this firmware using Scream!:

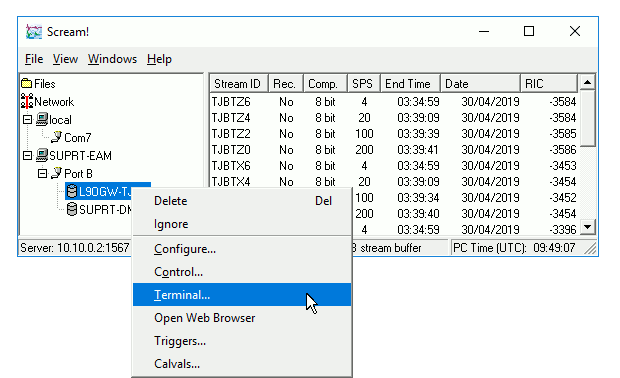

  1. Right-click on the digitiser’s icon (Scream digitiser icon) in the main window and select Terminal from the pop-up menu:

    Scream terminal menu

    A terminal window should open. Check that there is two-way communication with the digitiser by pressing enter. The digitiser should reply with ok on a new line.

    scream terminal window
  2. Type re-boot to reinitialise the digitiser,

    scream terminal window, showing reboot command

    and confirm with y. As it is restarting, the digitiser will report its status over the terminal connection, followed by a maintenance menu. (The first few lines will scroll of the top of the screen so it is presented here in text form.)

    I/OPort =$42 : RTModule no I2C ACK @ $78 MPE ARM ANS ROM PowerForth v6.30 ARM Serial BootStrap v1.100, 11 August 2003 Copyright (c) 2002-3 GSL, EDSL & MicroProcessor Engineering Ltd. Port 0 38400 baud Port 1 4800 baud Port 2 38400 baud Guralp Systems Ltd - ARM-BOOT v3.0 mgs 13/12/12 (Build _02) System Code versions loaded :- Current 0105:0000 Guralp Systems Ltd - DM+FW v.107 mgs 13/09/16 (Build _26) Backup 010E:0000 Guralp Systems Ltd - DM+FW v.107 mgs 13/09/16 (Build _26) Previous 0117:0000 Guralp Systems Ltd - DM+FW v.106 mgs 11/11/14 (Build 57w) DSP Code : 0103:0000 dsp1091.bin loaded 2016-09-29 Default 0104:0000 dsp1091.bin loaded 2016-09-29 Command keys: C - set real time Clock (2016 9 29 14:37:06 ) I - view/upload InfoBlock F - run the Forth monitor S - update System program O - select Other system program B - update Boot program D - update DSP code T - Toggle default DSP code Q - Quit maintenance system 5 seconds to auto-start

    If you do not press a key in the next five seconds, the digitiser will start up normally. If you want a little more time to read the menu, press the space-bar and the time-out will be increased to thirty seconds.

  3. Look in the boot-up messages to find the version of the boot loader you are currently using. It will be reported in a line like this:

    Guralp Systems Ltd - ARM-BOOT v3.0 mgs 13/12/12 (Build _02)

    In this example, the current boot loader is version 3.0, build 2.

    If the boot loader in the firmware package is newer than the version you currently have installed, you will need to update it first. Press b at the maintenance menu to do this.

    You will be asked for confirmation: press Y to proceed. You will then be asked to select a file transfer protocol. Press X to specify the X-modem protocol.

    The digitiser will then request an X-modem file transfer.

    • If you are using Scream!, a file browser window will appear automatically:

      Navigate through the directories on your computer and select the file to be uploaded, or type in its full path and file name. Click the 'Open' button to proceed.

    • If you are using a different terminal emulator, you may need to manually initiate an X-modem upload at this point.

    Whilst the file is loading, a progress window will be displayed. Depending on the speed of the link, it may take several minutes to transfer the bootloader.

    When the transfer is finished, you will be asked if you want to
    Reboot to run NEW BootLoader Y/N?
    It is essential to respond with a y before proceeding to the next session. Failure to do so may cause your system to become unusable.

    Once the system has rebooted, the maintenance menu will appear again. If you do not press a key within five seconds, the digitiser will start up normally. You do not want it to do that so press the space-bar: the time-out will be increased to thirty seconds, allowing you time to read the next instructions.

  4. The next step is to update the system program.

    It is essential to ensure that the boot loader is up to date before proceeding with upgrading the system program. If in any doubt, please contact for advice before continuing.

    To update the system program, press s at the maintenance menu. The digitiser will display the message Updating Application and then prompt you for your choice of file transfer protocol. Press X to specify the X-modem protocol.

    The digitiser will then request an X-modem file transfer.

    • If you are using Scream!, a file browser window will appear automatically:

      Navigate through the directories on your computer and select the file to be uploaded, or type in its full path and file name. Click the 'Open' button to proceed.

    • If you are using a different terminal emulator, you may need to manually initiate an X-modem upload at this point.

    Whilst the file is loading, a progress window will be displayed. Depending on the speed of the link, it may take up to twenty minutes to transfer the system code. Once the file is fully transferred, the digitiser will return to the maintenance menu.

  5. The next step is to update the DSP code.

    It is essential to ensure that the boot loader and system program are both up to date before proceeding with upgrading the DSP code. If in any doubt, please contact for advice before continuing.

    Look in the boot-up messages to find the version of the DSP code you are currently using.

    DSP Code : 0103:0000 dsp1091.bin loaded 2016-09-29 Default 0104:0000 dsp1081.bin loaded 2016-03-16

    There are two slots available for DSP code. In this example, the version in use is dsp1091.bin, i.e. version 1.091.

    If the DSP code in the firmware package is newer than the version you currently have installed, you will need to update it. Press D at the maintenance menu to do this. The digitiser will reply with

    Enter 0/1 to select DSP code to update

    Press <0 or 1 to specify which of the two DSP code slots you want to overwrite, and then press enter. The default is slot 0. This is the recommended slot to use unless you are performing diagnostic comparisons. The digitiser will then prompt:

    Enter Filename/date – upto 31 characters

    You can enter a descriptive string for the particular DSP code here. The digitiser will print this string at every boot-up, to remind you which version of the DSP code you are using. It is advisable to include the version number and the upload date. If you leave this blank, the original file-name will be used.

    You will then be asked for your choice of file transfer protocol. Press X to specify the X-modem protocol.

  6. The digitiser will then request an X-modem file transfer.

    • If you are using Scream!, a file browser window will appear automatically:

      Navigate through the directories on your computer and select the file to be uploaded, or type in its full path and file name. Click the 'Open' button to proceed.

    • If you are using a different terminal emulator, you may need to manually initiate an X-modem upload at this point.

    Whilst the file is loading, a progress window will be displayed. Depending on the speed of the link, it may take up to three minutes to transfer the DSP code.

  7. When the upload is complete, the digitiser will reprint the maintenance menu. Press the enter key (without selecting a menu option) and the digitiser will respond with

    Invalid command - Starting System

    and then proceed to boot up using the updated firmware. Exit your terminal emulator in the normal way; In Scream!, you only need to close the emulator window.

Release Notes

2019-07-16 : v.107 build 29 + DSP v10.91 + Boot-loader 30.02

This release contains a customer-specific modification. There is no general need to upgrade to this version.

  • Made configuration options for PPS jitter rejection non-volatile.
2019-07-16 : v.107 build 28 + DSP v10.91 + Boot-loader 30.02

This release contains a customer-specific modification. There is no general need to upgrade to this version.

  • Added configuration options for MUX ADC clock.
2019-05-03 : v.107 build 27 + DSP v10.91 + Boot-loader 30.02

This is now the recommended release for all Mk3 DM24s except for those with USB support, for which the latest v.103 build should still be used.

2016-09-13 : v.107 build 26 + DSP v10.91 + Boot-loader 30.02
  • Fixed a bug which affected scheduled generation of broadband noise calibration signals. (It did not affect manually-invoked calibration operations.)
2016-04-21 : v.107 build 25 + DSP v10.91 + Boot-loader 30.02
  • Reduced an amplitude-dependent DC offset in the broadband noise calibration signal. Added calibration details in "Start of Calibration" status.
2015-11-02 : v.107 build 24 + DSP v10.91 + Boot-loader 30.02

Version 107 overcomes a firmware size limitation inherent in v.106. It requires a version 3 boot-loader, which must be installed before the system code. This build contains all of the v.106 b57x functionality plus:

  • Support for variable gain on multiplexed inputs on suitable hardware
  • Added support for uBlox PGSxx messages - automatic leapsecond update
  • Fixed reporting of ms-gap value in $cmos output for values greater than 255
2015-02-24 : v.106 build 57x + DSP v10.90
2014-11-11 : v.106 build 57w + DSP v10.90
2014-10-08 : v.106 build 57v + DSP v10.90
  • Restore handling of GPRMC gps sentence for old Garmin gps units.
2014-04-24 : v.106 build 57u + DSP v10.90
  • Updated LCD code for DIP203 unit (initialisation timing/sequence issue).
2014-04-14 : v.106 build 57s + DSP v10.90
  • This release fixes a bug in the GPS power-cycling code which could power-off the GPS receiver for extended periods.
2012-05-03 : v.106 build 57d + DSP v10.90
  • This release properly fixes the “bin5″ problem, which caused occasional data corruption. It requires DSP v10.90 for correct SI mode operation.
2011-11-10 : v.106 build 57b + DSP v10.89
  • Adds RAW selection for causal filter – DSP v10.88 addressed causal time-stamping
  • Fixes erratic behaviour of calibration commands when terminating one already in progress
  • Fixes component (z, n/s, e/w & all) commands in Borehole/OBS SoH modes
  • Fixes DSP bootloading to cope with corrupt slot value
  • Adds ‘raw’ tap parameter to causal command to allow use with 2kHz input data – o/p at 1000,500 or 400sps
  • Fixes problem with SI mode which caused occasional data corruption
2011-09-28 : v.106 build 56f + DSP v10.87
  • Adds support for ‘Causal Filters’ – requires DSP v10.87
  • Removes testdac option on I2C error
  • The system now automatically assigns a ‘cal’ stream if no others are selected – a situation which previously caused a crash
  • Removes erroneous ‘terminating’ message when starting ‘cal’ operations
  • Added causal and channels commands
  • Adds filtering for the clock offset figure in Unified Status Packets
  • Adds PGAalarm to Spectral Intensity mode
  • Adds various custom commands for Moglie OBS using network
  • Adds two new commands (from b55r):
    • backupfram saves the current configuration in system flash ROM – this will then be
      AUTOMATICALLY reloaded after a trashfram operation
    • restorefram can also be used to revert to the backed up configuration
2011-07-01 : v.106 build 55m + DSP v10.86 + Build 11 of the v2 bootloader
  • Fixes a problem where the ‘C’ stream (calibration return) sometimes appeared as ‘X’
  • Fixes a problem where using only very low sample rates (1sps) could trigger reboots via the watchdog timer
  • Adds support for other GPS receivers (e.g. GLONASS) which require higher Baud rate. This is specified as gps-type 4 and requires use of the 1 xxxx baud command to configure Port1 to the correct speed. The system will automatically report a problem if NMEA is not detected.
  • Improves system performance regarding interrupt response and timing control
  • Fixes a possible problem of spurious resynchronisation on GPS power cycle
  • Fixes setid and resetlabels to correctly restore default Z,N,E,X labelling
  • Adds n StrongMotion command to address lowlatency/SI configuration issues. The command takes a single numeric parameter ; 0 for off, 1 for a three-component system, 2 for two three-component systems.
  • Removes incompatibilities between original SoH and ModularSoh
  • Adds ‘BytePipe’ mode for packeting arbitrary data stream into GCF format
  • Enhances temperature compensation
  • Includes updated SNTP for Mogli clock setting
2010-05-26 : Build 9 of the v2 bootloader
  • Adds support for newer Flash memory chips.
2010-05-24 : v.106 build 46
  • Provides fixes for unified status reporting of the clock difference flag (the algorithm now uses a fixed drift rate of 0.07µs/s when the clock is unlocked).
  • The GPS NMEA parser now understands $GPGSL sentences from a Guralp central timing facility (RTM), and correctly passes through information about the RTM’s GPS fix and drift to the DM24.
  • Fixes a problem which affected the broadband calibration facility (. RANDOMCAL).
2010-02-16 : Build 7 of the v2 bootloader
  • Fixed a problem which could occur during an update from v1 Boot when a new system fails to load correctly: the session will now stay at the boot menu until a valid system code update occurs.
2010-02-01 : v.106 build 42
This release was recommended for all Mk3 DM24s other than those with USB support, for which the latest v.103 build should still be used.

  • Adds support for 6/7 channel system with variable gain input stage.
  • Added short mux channel blocks for CD1.1 – 10 secsmux.
  • Added flush-flash command to ‘empty’ flash file. Use in preference to reset-flash: flush-flash simply sets the read pointer equal to the write pointer so the buffer is ‘empty’ – the data are still available until it is overwritten by wrapping round and the system continues to write from the current position.reset-flash resets the pointers back to the start so the old data gets overwritten straight away. The system uses the early part of the buffer more which is to be avoided in terms of durability (wear levelling).
  • Bug fixes :
    • %auto-centre rounding problem fixed
    • Improved handling for non-standard Baud rates
    • Scream TCP now reports version 4.5
    • .info command restored
    • Y/N handling of control chars
    • FireWire updated to handle full FAT size – 511 entries (as v103b70)
    • TCP/IP MSS issue fixed
2010-01-12 : v.103 build 82
  • This addresses issues with the accuracy and repeatability of data time-stamping and synchronising. Initial synchronisation to GPS has also been improved.
  • When updating from earlier firmware, the timing parameters will need to be reset using
    ok-1  0 [pwm] ! [pwm] nv! 59920 bias ! bias nv! $06010F dspsync ! dspsync nv!

    Newly manufactured units will be loaded with the correct defaults when initially run.

  • DSP1070 also addresses some potential problems for timing discrepancies between streams.
  • USP status now reports ‘calibrating’ for ‘ALL’ and the GPS sync/lock correctly.
  • GPS synchronisation always occurs after a startup/reboot – initial sync is better than 15 microseconds (this avoids a trim operation to align the clock from an initial 10 millisecond error, which would take a significant time, during which data would be inaccurately stamped).
2009-05-13 : v.103 build 78
  • Adds USB host support for memory sticks and improved trigger selection.
2008-06-30 : v.103 build 70
  • Properly handles GSL Disk filing – maximum 510 entries. Reports after transfer when insufficient space (number of files or free space) is left for next transfer and disables auto operation. Also advises when transfer size will result in more than 510 entries so disk capacity not fully utilised. Example status messages:
      2008  6 12 10:38:45 Data Ready to Transfer
      2008  6 12 10:41:25 Data Transfer Complete
      #Entries:  83 of 510
       Capacity   1.2GB        Used   1.0GB   Available 200.9MB
      Not enough space for next transfer   4.1GB FireWire Buffer

      2008  6 12 10:50:32 Transferring  30.0MB to Disk
      2008  6 12 10:50:53 Data Transfer Complete
      #Entries:  84 of 510
       Capacity  19.5GB        Used   1.0GB   Available  18.4GB
      FireWire buffer too  small for optimum  disk usage *****
  • Added PGA alarm setting, which operates on relay 1/3 on STA-DISP interface module (SI alarm is on relay 0/2). Use command SetPGAalarm to set the level in gal.
    Function of outputs on STA-DISP interface module.
    Measurement Current loop output Relay output Sensor
    SI 0 0 Sensor A
    PGA 1 1 Sensor A
    SI 2 2 Sensor B
    PGA 3 3 Sensor B
  • Added LLstreams disable to suppress output of data streams, so that only strong motion computed values are output. Use LLstreams enable to return to previous operation.
  • Added extra trap for baudrates divisible by 1200 to baud command. Use the new Forth command [baud] for other rates.
2008-05-23 : v.103 build 68
Fixes ADC sync problem, for both doesn’t stop and doesn’t start on GPS sync (fixes problem where timing could be 1 second out without any indication in status). Added support to switch between unified status and CD status. Defaults to CD status; use uspmonitor to re-enable unified status packets.
    2008-02-13 : v.103 build 65
    Addresses problem with undetermined SOH control line selection during startup. Initialises cal relay twice. Addresses issue of erroneous X channel selection. ADC sync failure does not re-boot, but instead forces another sync sequence. Fixed power switching of borehole SOH I2C. Added SetTriggerLevels (protected) for real-units setup of level triggering.
      2007-12-18 : v.103 build 64
      Updated firewire operation to allow multiple DMs to access a single disk on the same FireWire bus. Increased watchdog timeout. Flash bad block scan limited to 250 max.
        2007-10-30 : v.103 build 62
        Modified default modem init string (removed &H0 part). Remove spurious characters during setmodem$ command interaction.
          2007-10-26 : v.103 build 61
          Modem code now has configurable modem initialisation (command setmodem$). +modem supports option for ‘dial-in only’ mode.
            2007-10-17 : v.103 build 60
            Fixed bug in modem code.
              2007-10-16 : v.103 build 59
              Provides full SI (spectral intensity) functionality with DSP v.1060.
                2007-09-19 : v.103 build 50
                Sync test checks for ADCs that don’t stop/start on sync, fixes timing error where data <e;1 second out.
                  2007-07-16 : v.103 build 49
                  Support for 512Mb (4Gbit) NAND flash.
                    2007-07-12 : v.103 build 48
                    Force re-boot if failure to ‘sync’ detected.
                      2007-07-02 : v.103 build 47
                      Antares OBSN timemark stamping and support for MEMS level sensor.
                        2007-06-26 : v.103 build 46
                        Fixed issue with minimum motor speed for state of health and added “sticky” motor code.
                          2007-06-20 : v.103 build 45
                          Support for ORCA rubidium clock in palce of GPS – INGV OBS.
                            2007-06-04 : v.103 build 44
                            Updated borehole state of health for end of travel and baudrate with RTM.
                              2007-05-24 : v.103 build 41
                              Correctly resets state of health control lines to tristate.
                                2007-05-22 : v.103 build 40
                                Added error report if ADCs fail to run on GPS sync (or startup).
                                  2007-05-16 : v.103 build 38
                                  Added ‘height’ to GPS location display. Enhanced DSS status – allows output rate to be adjusted between 5 and 60 seconds (setdssrate). Supports ‘enhanced’ BRP mode developed for IP wireless networking. System also automatically ‘files’ data that would have been lost due to transmit buffer — can be recovered by selecting adaptive mode.
                                    2007-03-20 : v.103 build 32
                                    System sets up to run at 32MHz processor clock – problem with Cal DAC access causing timing errors.
                                      2007-03-09 : v.103 build 31
                                      Properly fixed dsp configuration problem.
                                        2007-03-08 : v.103 build 30
                                        Fixed problem with dsp configuration with certain sample rates and NAK handling with adaptive.
                                          2007-03-01 : v.103 build 28
                                          Fixes problem with large flash chips on board.
                                            2007-02-27 : v.103 build 27
                                            This and later versions require Boot1025 – larger program slots. Has full user HELP and EXPLAIN.
                                              2007-02-16 : v.103 build 25
                                              Added serial2 and resetlabels user commands for 2 sensor systems. Also support for 2 infoblks.
                                                2007-02-07 : v.103 build 24
                                                Removed support for ADS1217 – not compatible with ADS1216 on the DM24. Added autocal command. Fixed some compatibility issues with borehole systems.
                                                  2006-12-14 : v.103 build 18
                                                  Added trap to reset xtal control to known good pwm when GPS lost (control off). Prevents large clock drift if gps lost during xtal adjustment.
                                                    2006-12-11 : v.103 build 17
                                                    Improved Flash bad block handling.

                                                    Note: Units running firmware before v.103 build 10 may incorrectly mark blocks of Flash memory as “bad” and not use them. To return incorrectly-marked blocks to use, download all data from Flash memory, then issue the commands

                                                    ok-1                             select extended dictionary vocabulary
                                                    direct                           switch off flash filing mode
                                                    .badblks                         show current table
                                                    0 blkerase .                     erase table (note the "." after blkerase)
                                                    checkflash                       rescan for marked bad blocks
                                                    .badblks                         show updated table
                                                    erasefile                        to completely clear the data in flash
                                                    [seal]                           revert to 'system' commands

                                                    Now reconfigure the digitiser to record to flash using the previous filing mode.

                                                    2006-11-07 : v.103 build 16
                                                    Support for new 5TD LCD display interface
                                                      2006-08-05 : v.103 build 11
                                                      SETDSS command for extended status information
                                                        2006-08-01 : v.103 build 05
                                                        Support for high sample rates (200 – 1000 samples/s)
                                                          2006-06-23 : v.102 build 74 + DSP 1.055
                                                          LOWLATENCY mode for fast output at 20 samples/s
                                                            2006-06-02 : v.102 build 69
                                                            MICRO-G command for level trigger setup
                                                              2006-04-19 : v.102 build 68
                                                              COMPRESSION settings extended to allow short GCF blocks down to 20 records/block; SERIAL2 command supports dual serial numbers for 6-channel digitisers.
                                                                2006-04-12 : v.102 build 66
                                                                Fixed minor issues with new Flash chip types, bad block handling and Firewire.
                                                                  2006-03-10 : v.102 build 61
                                                                  Addressed problem where FireWire download would not necessarily transfer the complete up to date data. Added support for new Flash chip types and USB.
                                                                    2006-02-01 : v.102 build 58
                                                                    Added support for data in on ports 1 and 2, also pass-through terminal connection; USB for data-out or console; HELP and EXPLAIN commands; DUPLICATE filing mode as 6T.
                                                                      2006-01-16 : v.102 build 55
                                                                      LCD support. EVENTSLIST and EVENTS DOWNLOAD. Sends infoblock at boot.
                                                                        2005-12-01 : v.102 build 52
                                                                        Fixed issue with corruption of mux channels at start up (cal relay switching)

                                                                        For more information, first contact your local distributor or email .
