Chapter 2. Introduction

The Güralp40TB is a three-axis seismometer consisting of three sensors stacked vertically in a sealed borehole sonde, designed for use in cased boreholes with diameters between 89 mm (3.5”) and 229 mm (9”).

The seismometer system is self-contained except for its 12 – 30 V power supply, which is provided through the same cable as the analogue data. Sensor functions such as levelling and centring are controlled internally by a microprocessor to provide autonomous initialisation after installation. These functions can be observed and triggered via a 'Breakout Box' and 'Hand-held Control Unit' or GüralpDM24 digitizer.

Note: Please consider the cable length (cable line resistance) of your installation and ensure that the DC voltage provided from the surface is sufficient. Contact Güralp Systems for further information.

A 40TB instrument with “30 s” response is sensitive to ground vibrations in the frequency range 0.033 – 100 Hz; one with a “1 s” response is sensitive in the range 1 – 100 Hz. The instrument outputs analogue voltage representing ground velocity on balanced differential lines.

Each seismometer is delivered with a detailed calibration sheet showing its serial number, measured frequency response in both long and short period sections of the seismic spectrum, sensor DC calibration levels, and the transfer function in poles/zeros notation.

2.1 System configuration

Güralp Systems borehole installations generally consist of the following components:

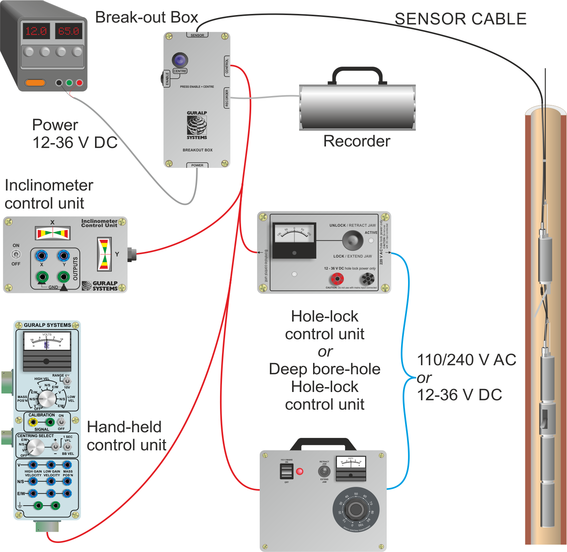

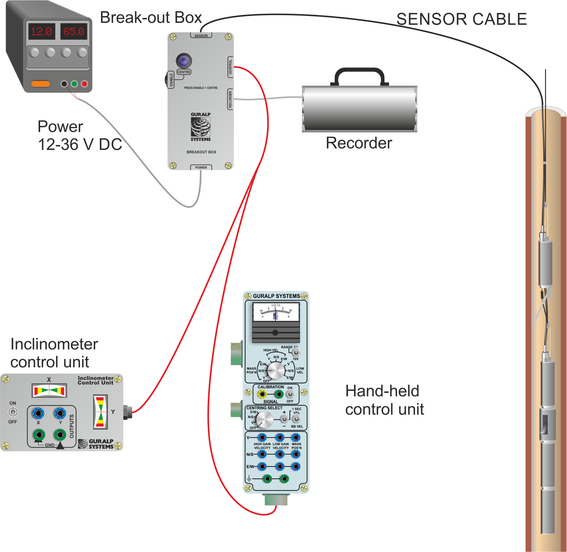

For example, a borehole or pit installation of a Güralp40TB instrument with a single-jaw hole-lock has the following layout:

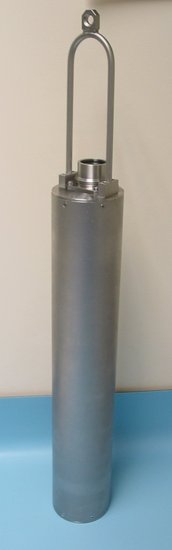

Güralp 40-series instruments are also suitable for installing in boreholes with sand backfill. In this case no hole-lock unit is necessary.

2.2 Digital borehole installations

The Güralp DM24 digitizer is available in a borehole sonde form. Connecting a Güralp borehole instrument to a down-hole digitizer allows you to construct a true digital borehole installation. This has several advantages over a traditional borehole set-up:

A digital borehole installation can be provided with RS232, RS422 or fibre-optic links to the surface, depending on the depth of the borehole.

When a down-hole digitizer is present, it takes the place of the strain relief unit in the borehole. The surface unit also takes a slightly different form, with a serial connector allowing you to attach a modem or other communications link. In this type of installation, instead of using the surface unit to pass control signals to the sensor, all functions can be accessed remotely via the digitizer.

If you prefer to install a stand-alone digitizer at the surface, it should be connected to the 26-pin RECORDER socket of the breakout box.

2.3 The hole-lock systems

The hole-lock clamp unit in a 40TB instrument provides a stable platform for the sensor modules mounted above and below it. It is designed to maintain a positive pressure on the borehole casing over a prolonged period of time without attention, and to fix the sonde in place whilst avoiding transmitting any stresses.

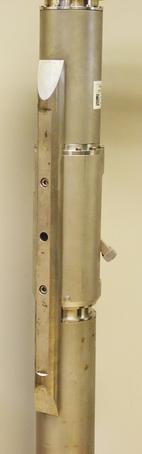

3TB-hole-lock-with-skidGüralp Systems hole-locks are constructed to order from accurate measurements of your borehole at the depth you wish to install the instrument. Either single-jaw or three-jaw hole-lock units can be manufactured.

In installations with sand backfill, or where the instrument rests on the bottom of the borehole, a hole-lock may be unnecessary.

2.3.1 The single-jaw hole-lock

The single jaw hole-lock is the standard option for triaxial borehole instruments. It consists of an active clamp arm and a number of skids or studs on the sonde body. The arm is attached to a compression spring, which forces it to swing out from the sonde and wedge the body against the borehole wall. A serrated steel jaw at the end of the arm provides maximum grip against the borehole casing. The skids or studs and the locking arm together form a multi-point clamp, which aligns the sonde body parallel to the axis of the borehole and holds it firmly in place so that it cannot twist or slip under the influence of ground vibrations.

There are several configurations of skids and studs which can provide a suitable clamp. Either

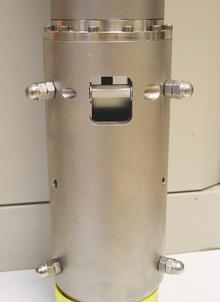

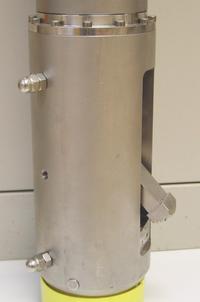

3TB-hole-lock-with-studs     3TB-hole-lock-with-studs-front

Studs have the advantage of being smaller than skids, but the contact points are very close to each other. You should evaluate the various locking methods available to see which works best in your borehole.

The spring inside the lock provides around 60 kg of force at its locking position. A DC actuator retracts the arm into the body of the lock so that the sensor mechanism can be installed and removed. The actuator consists of a 14 Watt D.C. motor with a planetary reduction gear-head, which drives the nut of a ball lead screw through the helical drive gears. The thread of the lead screw is prevented from turning, and so moves linearly when the nut turns.

The motor has a power system separate from that of the sensor, and can be controlled from the surface using a hole-lock control unit. Once the sonde is installed, the hole-lock control unit may be removed. Without power, the hole-lock will not be able to retract, and the sensor will be secured.

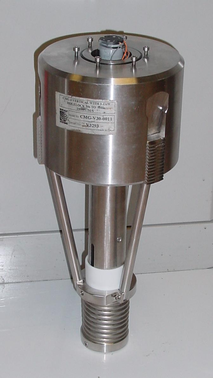

2.3.2 The three-jaw hole-lock

A three-jaw hole-lock is available which gives better grip on the borehole casing, but is bulkier and heavier than the single-arm lock. This is the standard option for uniaxial instruments; it can be installed in boreholes between 89 mm (3.5”) and 178 mm (7) in diameter.

The three-jaw hole-lock consists of a set of three active clamp arms attached to a compression spring, which forces them to swing out from the sonde and wedge themselves against the borehole wall. Serrated steel jaws at the end of each arm provides maximum grip against the borehole casing. This configuration ensures that the sonde body is held parallel to the axis of the borehole and prevented from twisting or slipping under the influence of ground vibrations.
