ARTIUS
A DIGITAL BROADBAND NODE FOR LARGE N ARRAYS
Integrated digitiser
With internal GNSS timing
Multi-node docking station
For mass data download at up to 3 MB/s (concurrent)
For rapid push deployments
With single connector for power supply
30 s to 200 Hz response
The Artius response vastly outperforms geophone based nodes
Wireless configuration via Bluetooth
With the free GüVü smartphone app
Compact and robust
Artius measures just 80 mm × 80 mm × 105 mm
FEATURES
BROADBAND SEISMIC NODE - A UNIQUE COMBINATION
Artius offers a unique combination of performance and portability. A three-component, digital broadband seismometer, Artius was designed as an economic and research-grade node for projects requiring higher station density in medium to high noise sites.
RAPID TEMPORARY DEPLOYMENTS
Artius has a true broadband response of 30 seconds to 200 Hz and is suited to rapid temporary deployments where it can be either pushed or staked into the ground. As Artius has an internal digitiser and GNSS, it requires just a single port to connect to an external power source to power the sensor during deployment. A bubble level housed within the top of the sensor allows for levelling once in situ.

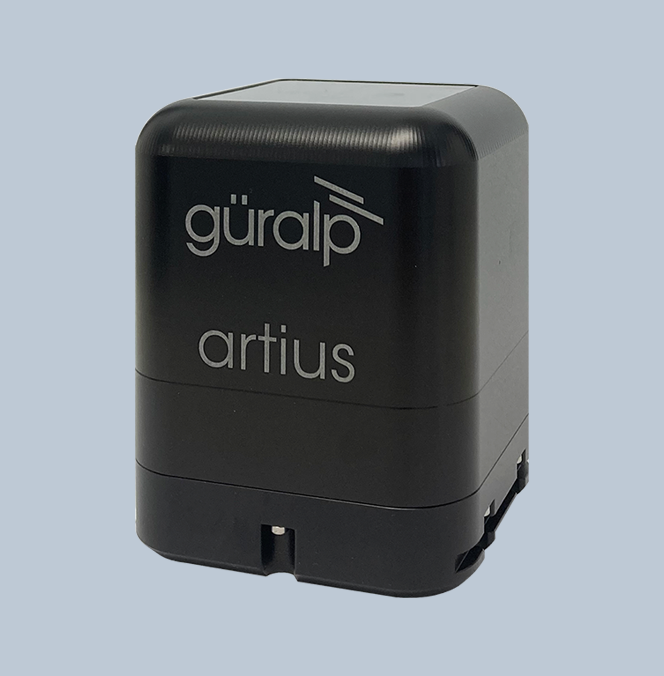

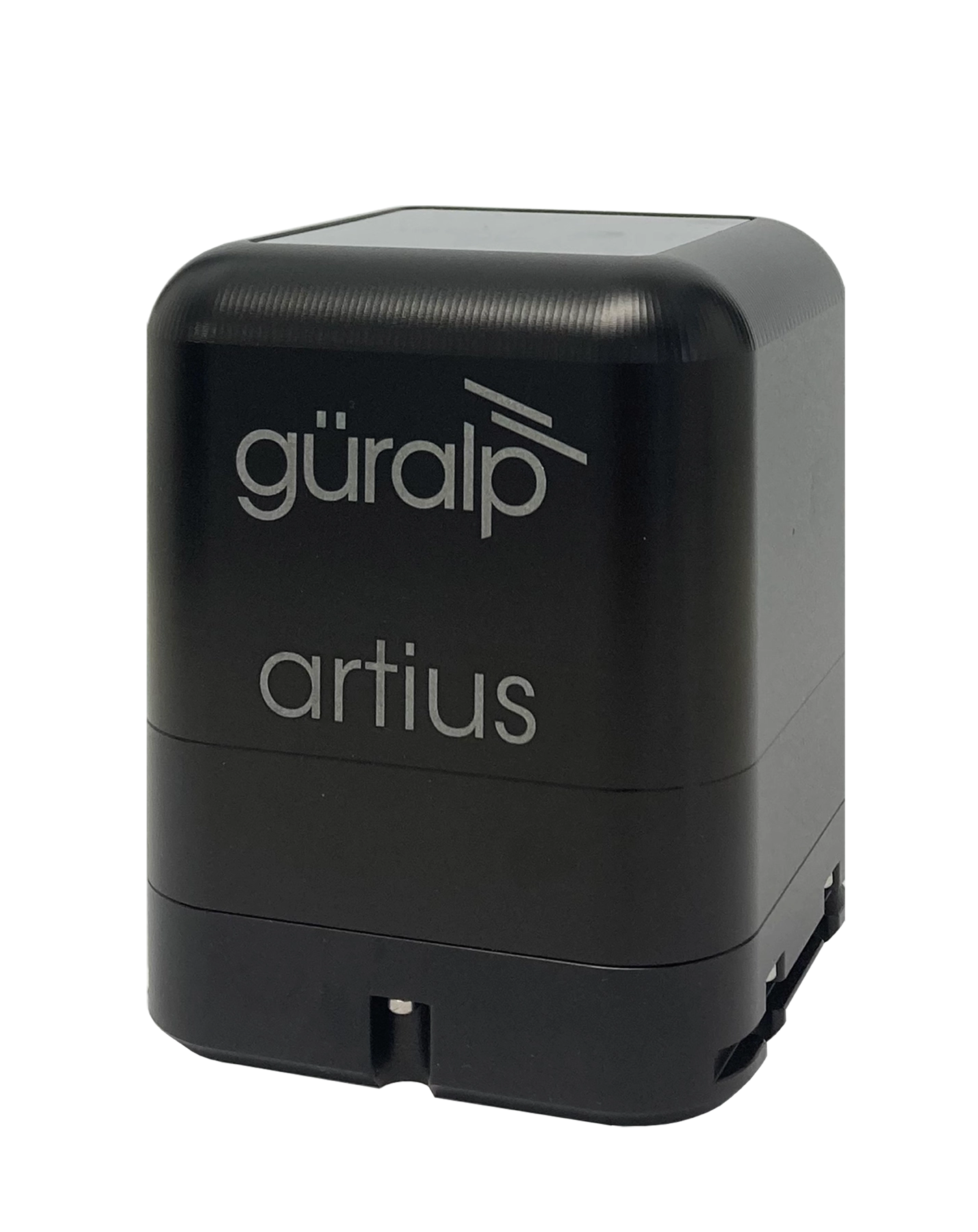

COMPACT AND ROBUST
For a broadband instrument, the Artius has an impressively compact form-factor of just 80 mm square by 105 mm height. The hard anodised aluminium casing is environmentally sealed to withstand the most challenging field environments.

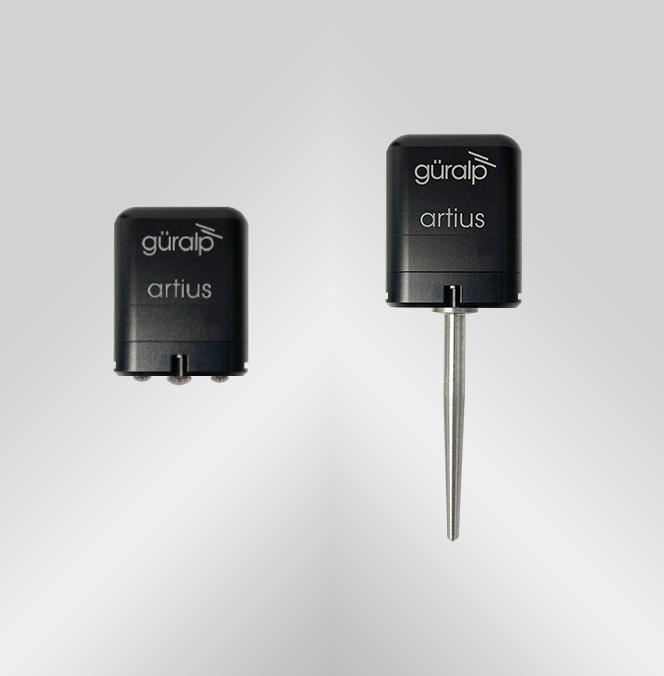

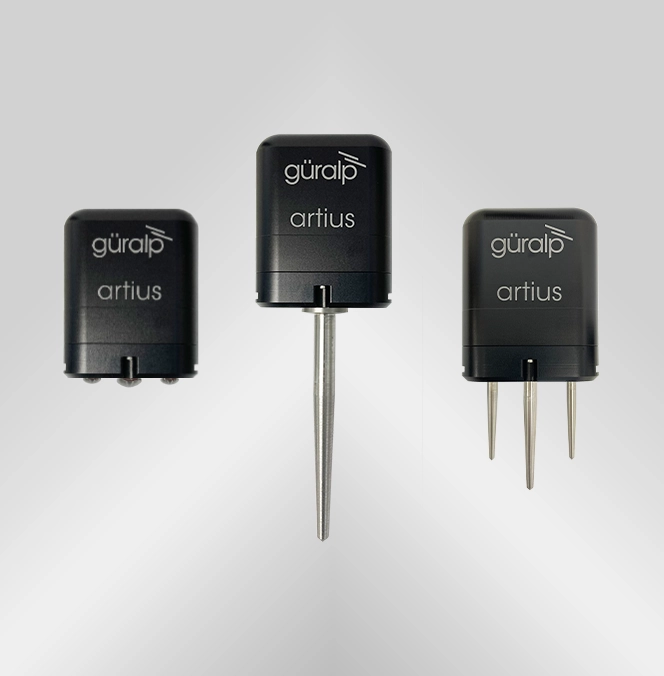

Select options for feet or deployment spikes.
Select options for feet or deployment spikes.

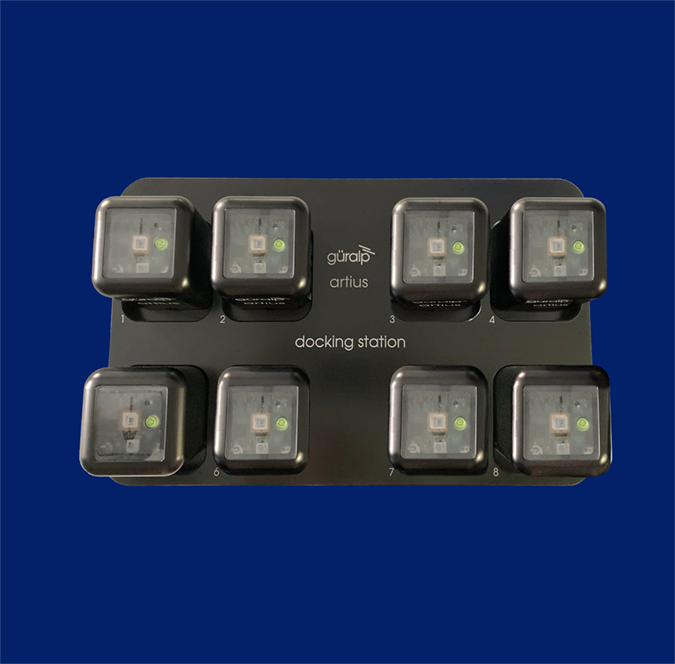

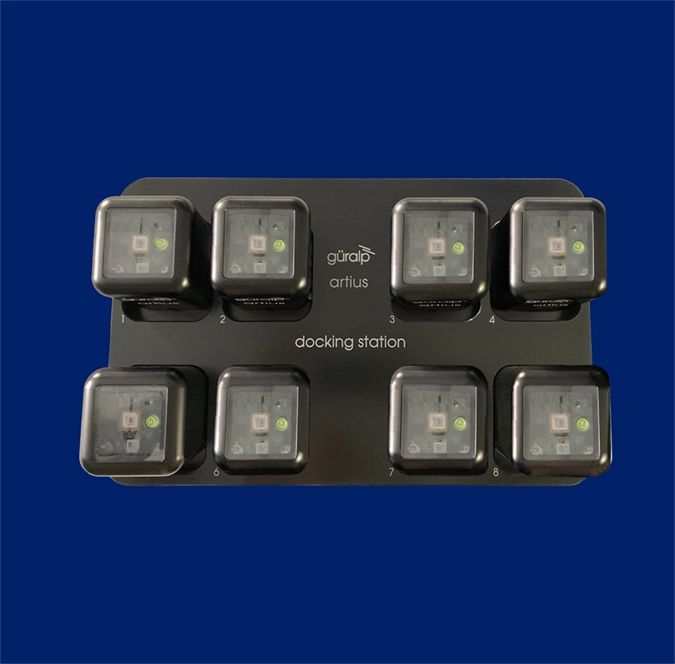

8-NODE DOCKING STATION
Designed for efficiency, a purpose-built docking station accommodates up to eight nodes − simplifying both deployment preparation and post-mission data handling.
Data are locally recorded in miniSEED (with metadata stored in Station XML and dataless SEED formats). Sensor configuration and data management tools are provided via the Güralp Discovery software platform.
SPECIFICATIONS
Configuration / Topology
Triaxial orthogonal (ZNE) for both sensors
Frequency response
30 seconds to 200 Hz
Output sensitivity
2 x 500 V/msˉ¹ (1000 V/msˉ¹) equivalent
Sensor dynamic range
> 147 dB
Self-noise
-143 dB
Operational tilt range
+/- 3°
Centring
Automatic
Data output rates available
1 to 1000 samples per second
Timing
Internal GNSS
Dimensions
Width 80 mm × depth 80 mm × height 105 mm
Weight
1.4 kg (no feet or deployment spikes)
Enclosure/materials
Environmentally sealed, hard anodised aluminium
