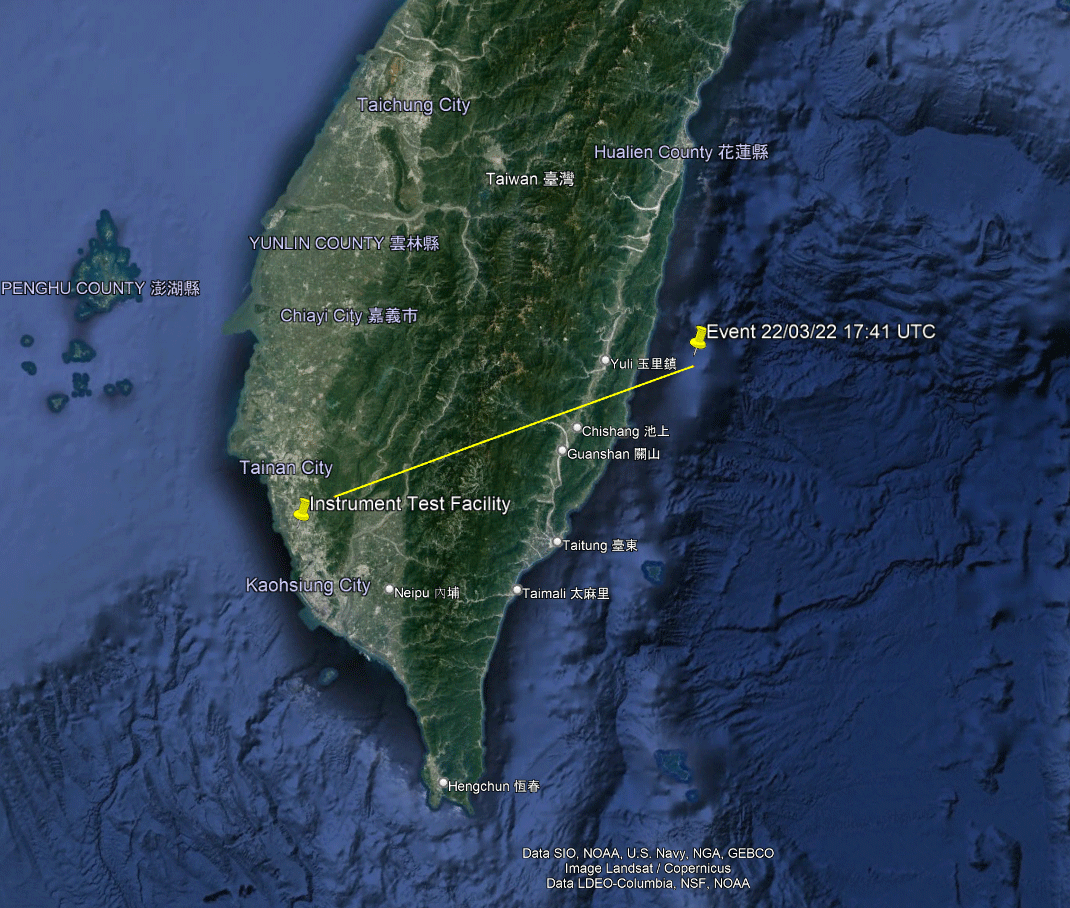

Map of Magnitude 6.6 Earthquake, Taiwan (23.03.2022) and location of instrumentation
Map of Magnitude 6.6 Earthquake, Taiwan (23.03.2022) and location of instrumentation


Seismic monitoring lessons from Magnitude 6.6 Earthquake in Taiwan

The magnitude 6.6 earthquake that struck 20 km off the eastern coast of Taiwan last night, was captured on our newest combination 3T-120/5T borehole instruments 150km away.

The waveform data from the instruments clearly demonstrates the benefit of installing hybrid seismometer/accelerometer instruments in areas that have increased risk of high magnitude events.

The waveform image (Fig 1) shows the data from five hybrid borehole instruments. You can see that the sensitive 3T-120 seismic sensors (the bottom three sets of waveforms) clipped at the peak of the shaking, whereas the 5T accelerometer sensors (top three sets of waveforms) captured the full event. The full waveform data is required for accurate measurement of the earthquake.

The overlay image below shows just how much data the clipped sensors missed.
Fig 3: Diagram showing clipped seismometer waveforms overlaid against the full waveforms captured by the accelerometers in the hybrid 3T-120 / 5T borehole seismometer
Fig 4: Diagram showing zoomed in waveform overlays captured by the hybrid 3T-120 / 5T borehole seismometer

The zoomed in image above shows how, despite the clipping, the two sets of data, from two different types of sensor, mirror each other impressively well in respect to the overall pattern of the signals.

The Güralp instruments that captured the earthquake were on a 7-day test prior to installation as part of a regional network.


Fig 1: Waveform data of 5 hybrid borehole instruments from the Magnitude 6.6 event
Fig 2: Close up of hybrid borehole waveform data from the Magnitude 6.6 event
3T/5T borehole instrument
