A truly portable, broadband, weak-motion triaxial seismometer
The Güralp 3ESPC is a proven weak-motion triaxial broadband seismometer for the price and size of a medium-motion instrument.
Ideally suited for long-term temporary and permanent installations in areas with low to moderate noise levels. The instruments' broadband response and low self-noise level make it suitable for seismic monitoring at all scales: local, regional and teleseismic.
In addition to the analogue instrument, we also offer two digital variants:
3ESPC -analogue instrument
3ESPCD - integrated with a digitiser for low-power deployment with Flash memory storage
3ESPCDE - integrated with a digitiser and acquisition module with web-based user interface and communication over serial and Ethernet
A low-power and portable instrument for areas with low to moderate noise
- 60 s - 100 Hz standard frequency response, (option of 120 s low-pass corner)
- Covers the complete seismic spectrum with a single transfer function
- Self noise below the USGS NLNM from 30 s to 16 Hz
- High linearity: > 107 dB horizontal, 111 dB vertical
- Over 165 dB dynamic range over a wide frequency band
- Cross axis rejection over 62 dB; sensor axes orthogonal to within ± 0.05°
- Robust automatic mass locking, unlocking and centring
- Low power consumption of just 750 mW
- Truly portable - just 8.4 kg with lifing handle, and convenient access to connectors
- Hard anodised aluminium enclosure
- IP68 - protection against effects of prolonged immersion at 3 m depth for 72 hours

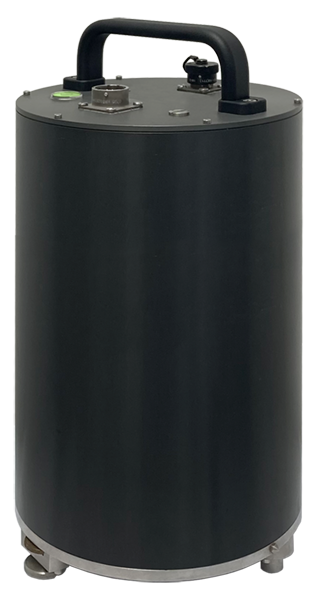

The 3ESPC with integrated digitiser for easy, low-power deployment and data collection
- 60 s - 100 Hz standard frequency response, (option of 120 s low-pass corner)
- 6000 V/ms-1 (2 x 3000 V/ms-1) sensitivity
- Covers the complete seismic spectrum with a single transfer function
- On board 24-bit digitiser with configurable output and up to 32 GB of built in Flash memory
- High linearity: >107 dB, 111 dB vertical
- Over 165 dB dynamic range; low self noise over a wide frequency band
- Cross axis rejection over 62 dB; sensor axes orthogonal to within +/- 0.05°
- Robust automatic mass locking, unlocking and centring
- Adjustable feet allow for levelling up to 4° tilt
- Truly portable - 9.3 kg with lifing handle and convenient access to connectors
- Simple and fast live data download over FireWire. Ethernet and Wi-Fi options available
- Hard anodised aluminium enclosure
- IP68 - protection against effects of prolonged immersion at 3 m depth for 72 hours

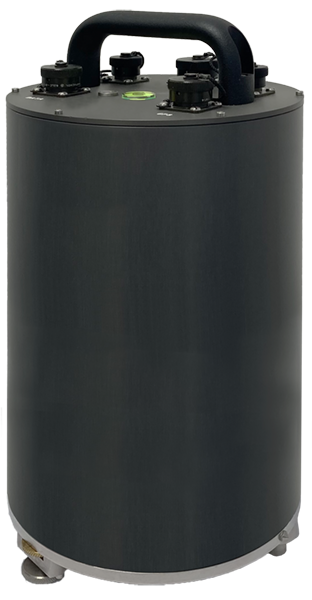

Integrated with a Linux-based digitiser and data acquisition module offering web-based user interface and communication over serial and Ethernet
- 60 s to 100 Hz (option of 120 s to 100 Hz)
- 6000 (2 × 3000) V/ms-1 sensitivity
- Hard anodised aluminium enclosure
- Remote-controlled mass locking/unlocking
- 3 channel 24-bit ADC (primary)
- 1 auxiliary 24-bit ADC (used for auxiliary input and calibration signal)
- Over 165 dB dynamic range; low self noise over a wide frequency band
- High linearity: >107 dB, 111 dB vertical
- Cross axis rejection over 62 dB; sensor axes orthogonal to within +/- 0.05°
- STA/LTA triggering
- Linux OS with web server
- Ethernet output
- Digitiser and sensor control via Platinum software (via web browser), Güralp Scream! software (free download), Terminal window over SSH or serial link
- Data recording in GCF and MiniSEED
- Data streaming protocols: GCF (Scream!), SEEDlink, CD1.1 and GDI-link
- Internal 16 GB Flash memory with USB 2.0 port
- IP68 - protection against effects of prolonged immersion at 3 m depth for 72 hours
Accessories for 3T-360:

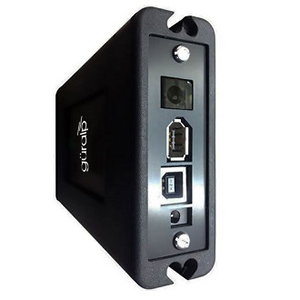

DSK 250 GB ruggedised portable disk (SSD) READ MORE
