CERTIMUS
NEXT-GENERATION SEISMIC STATION
GüVü Bluetooth App
Displays instrument State-of-Health (SOH), waveforms, orientation, temperature and humidity data
120 s - 100 Hz
With a remotely adjustable long-period corner of 1 s, 10 s and 120 s
Ultra-low-power mode < 300 mW
Ideal for remote sites powered by battery or solar
± 90° tilt range
No other seismometer is easier to install
Wi-Fi and PoE
For plug-and-play deployment

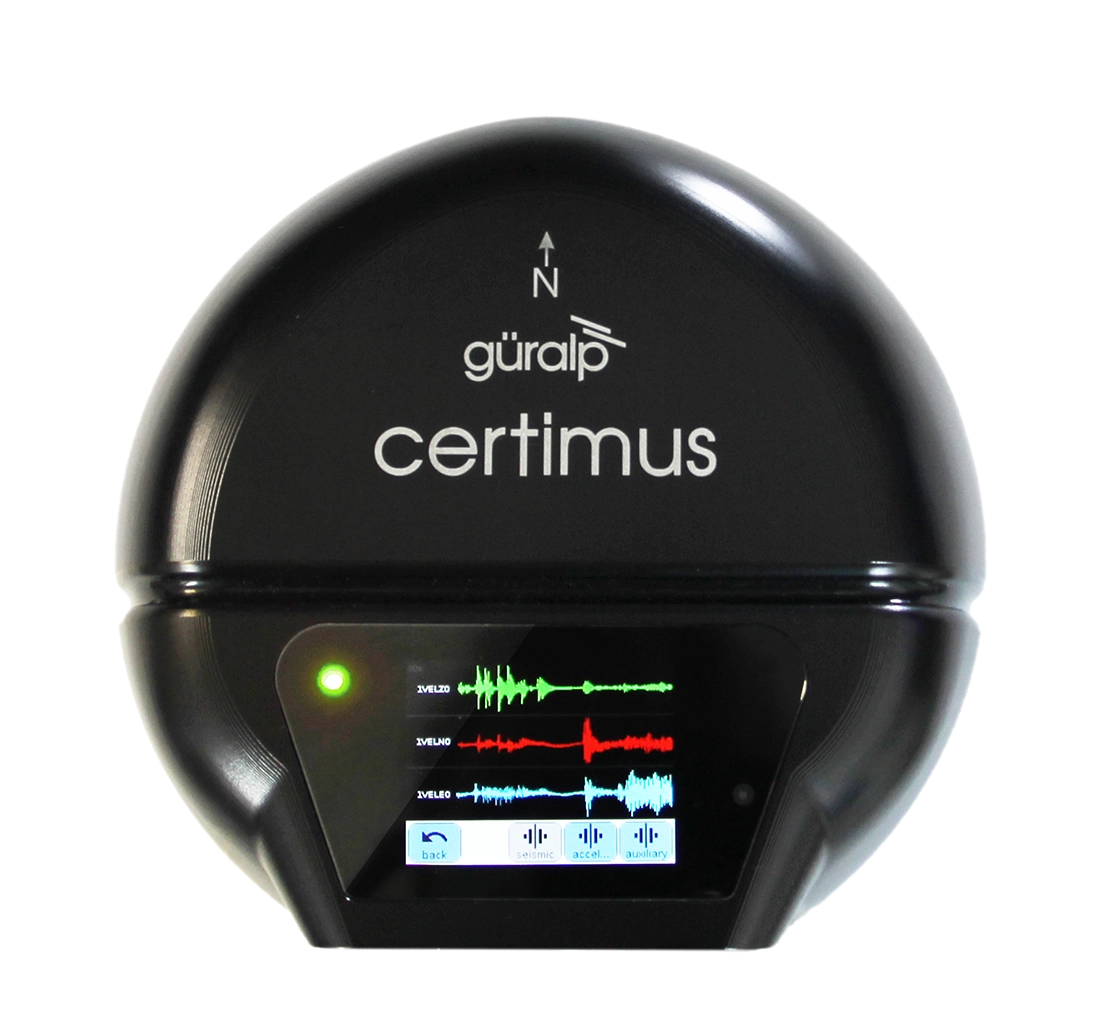

Multi-touch sensitive LCD screen
Optional 2.4 inch, full colour LCD display showing waveforms, instrument settings and State-of-Health (SOH), network configurations and a virtual instrument level
For added confidence

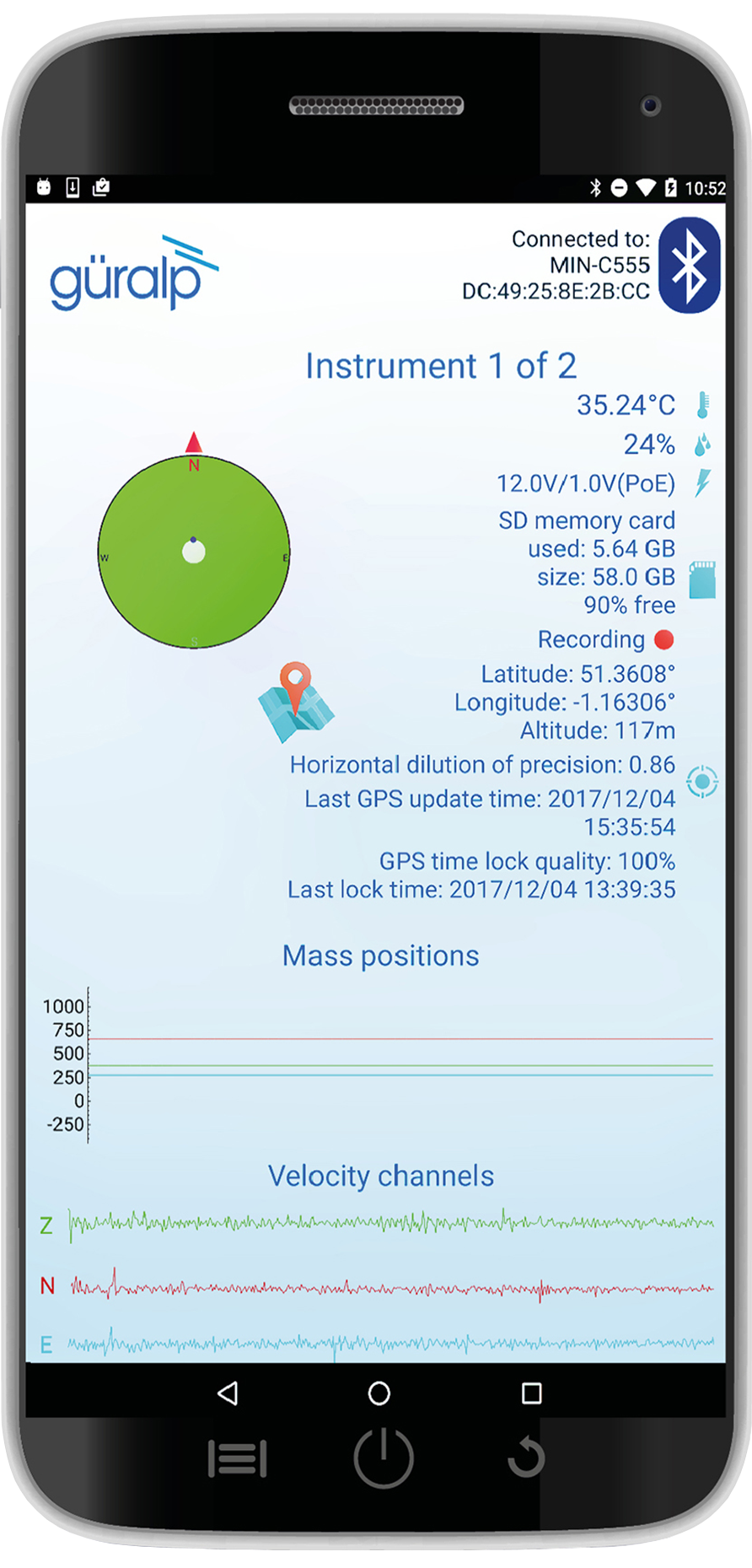

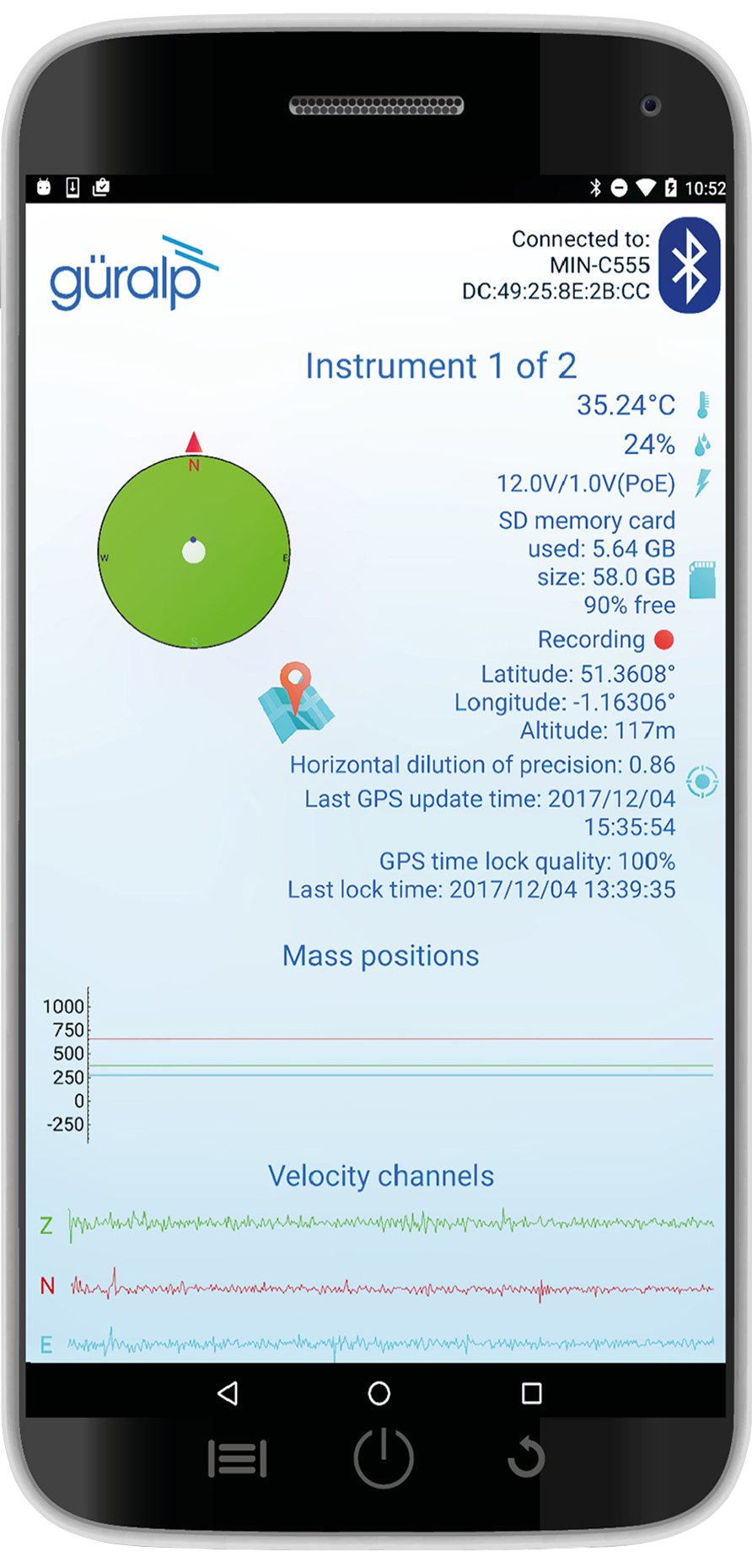

Our GüVü Bluetooth App, displays waveforms, orientation, temperature and humidity data, plus you can alter sample rates without disturbing the instrument.
CERTIMUS FEATURES
EASY INSTALLATIONS

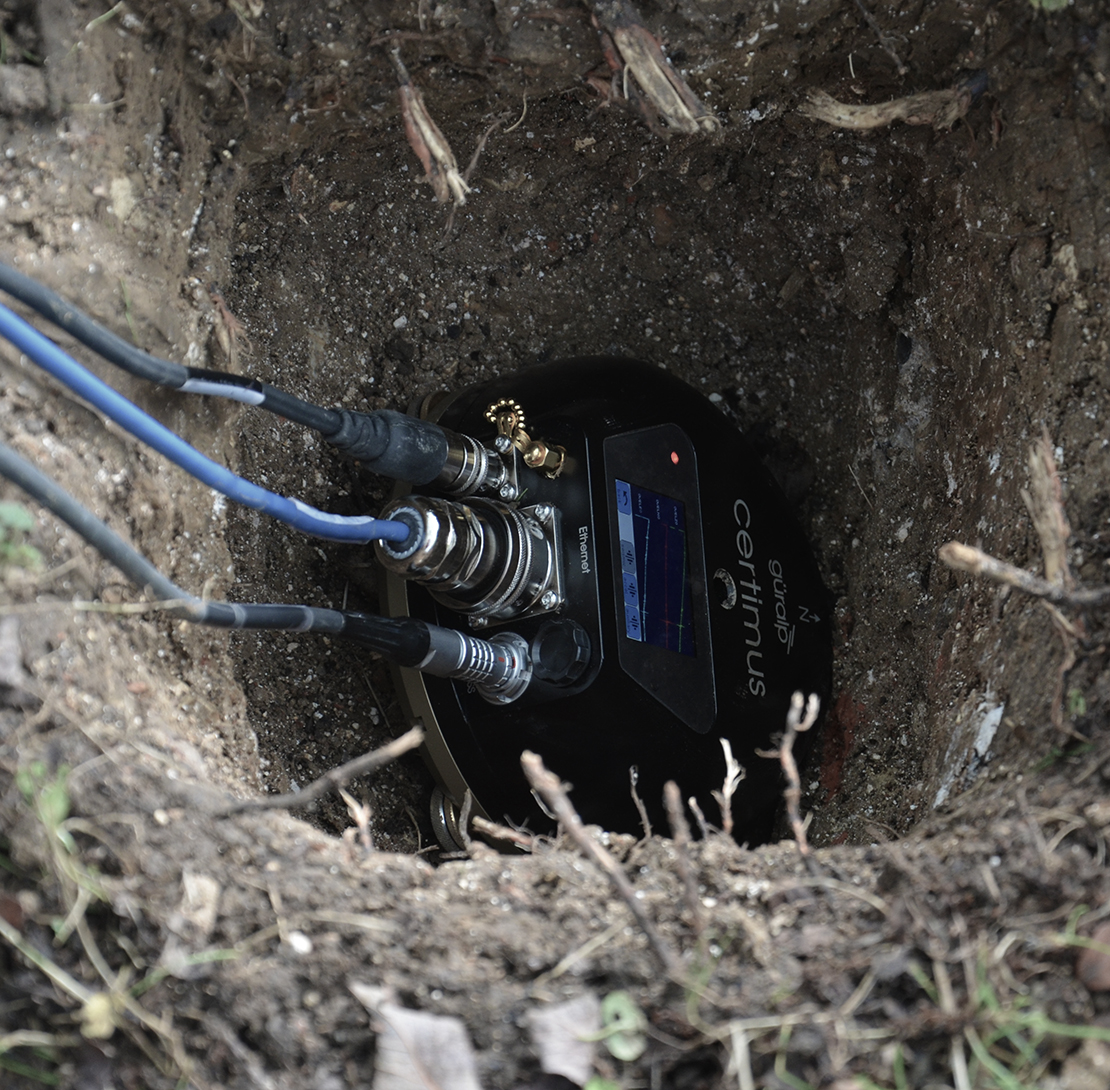

With an operational tilt range of ± 90°, the hole required for direct burial just got a lot smaller.
And, if you need to be up and running in the shortest timeframe, the 1 and 10 second modes adjust the high-pass frequency corners pre- or post-deployment to significantly reduce the settling time of the sensor.
And, if you need to be up and running in the shortest timeframe, the 1 and 10 second modes adjust the high-pass frequency corners pre- or post-deployment to significantly reduce the settling time of the sensor.
INSTRUMENT AND DATA
MANAGEMENT MADE SIMPLE
Our Discovery software gives you access to hardware State-of-Health; data viewing; data streaming and back fill capabilities; advanced data analysis tools; GNSS location; instrument response and calibration values.
Find out more about Discovery
Find out more about Discovery
DESIGNED TO WITHSTAND THE HARSHEST OF ENVIRONMENTS

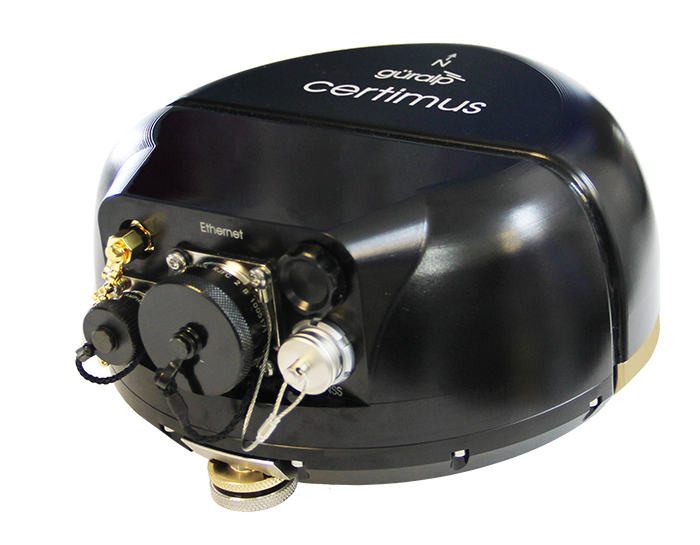

Encased in an environmentally sealed, hard anodised aluminum casing and available with or without a multi-touch sensitive, 2.4 inch, full colour LCD display. Certimus has an internal thermometer and a humidity sensor to alert you to any moisture ingress.
FIELD DEPLOYMENTS MADE EASY

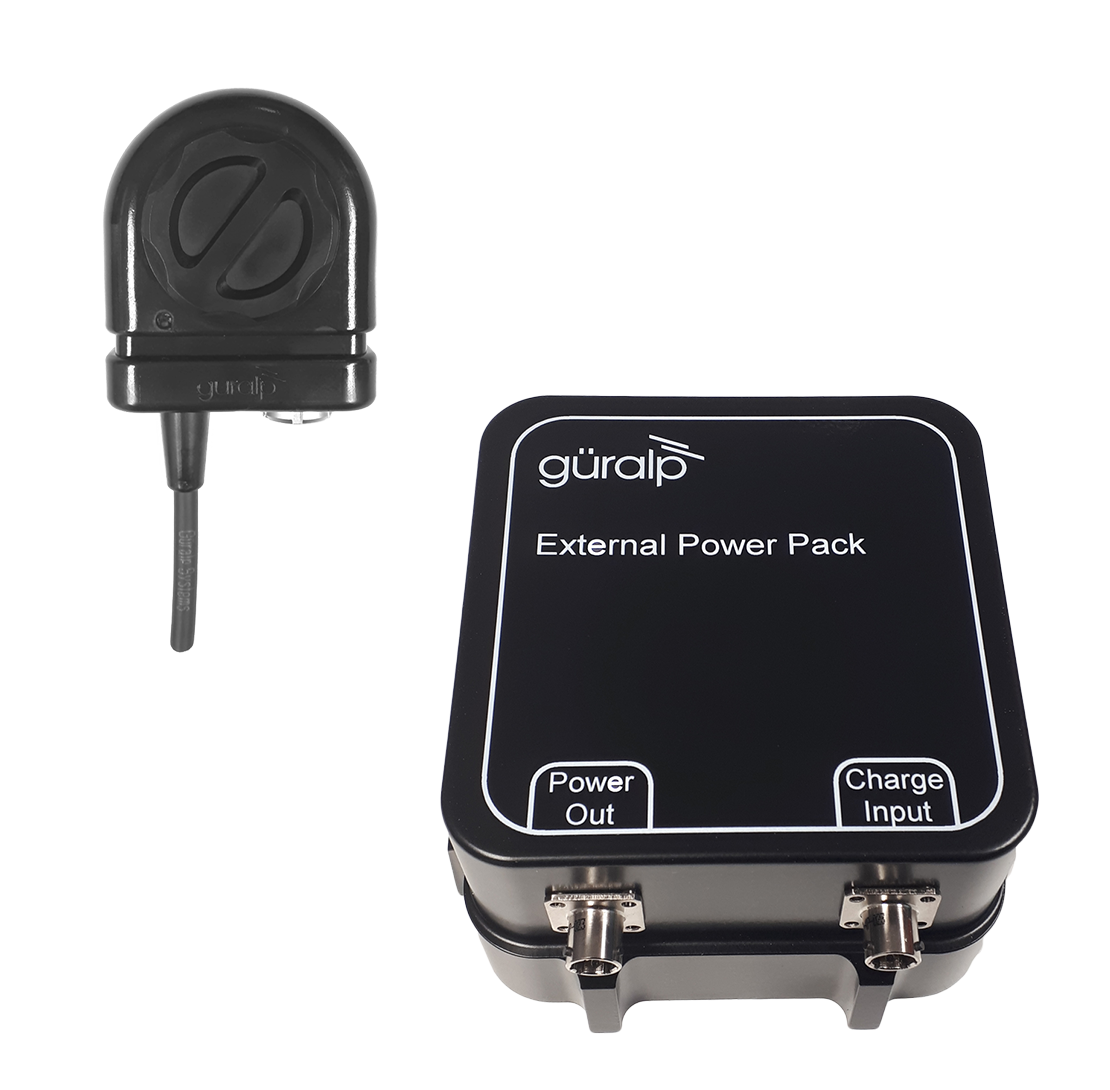

For direct burial installations, data can be recorded to an SD card in the Surface Storage Module for easy retrieval without disturbance.
For remote sites, the Portable Power Pack provides a compact, re-chargeable battery suitable for direct connection to solar panels.
For remote sites, the Portable Power Pack provides a compact, re-chargeable battery suitable for direct connection to solar panels.
READY TO GO WHENEVER
YOU ARE

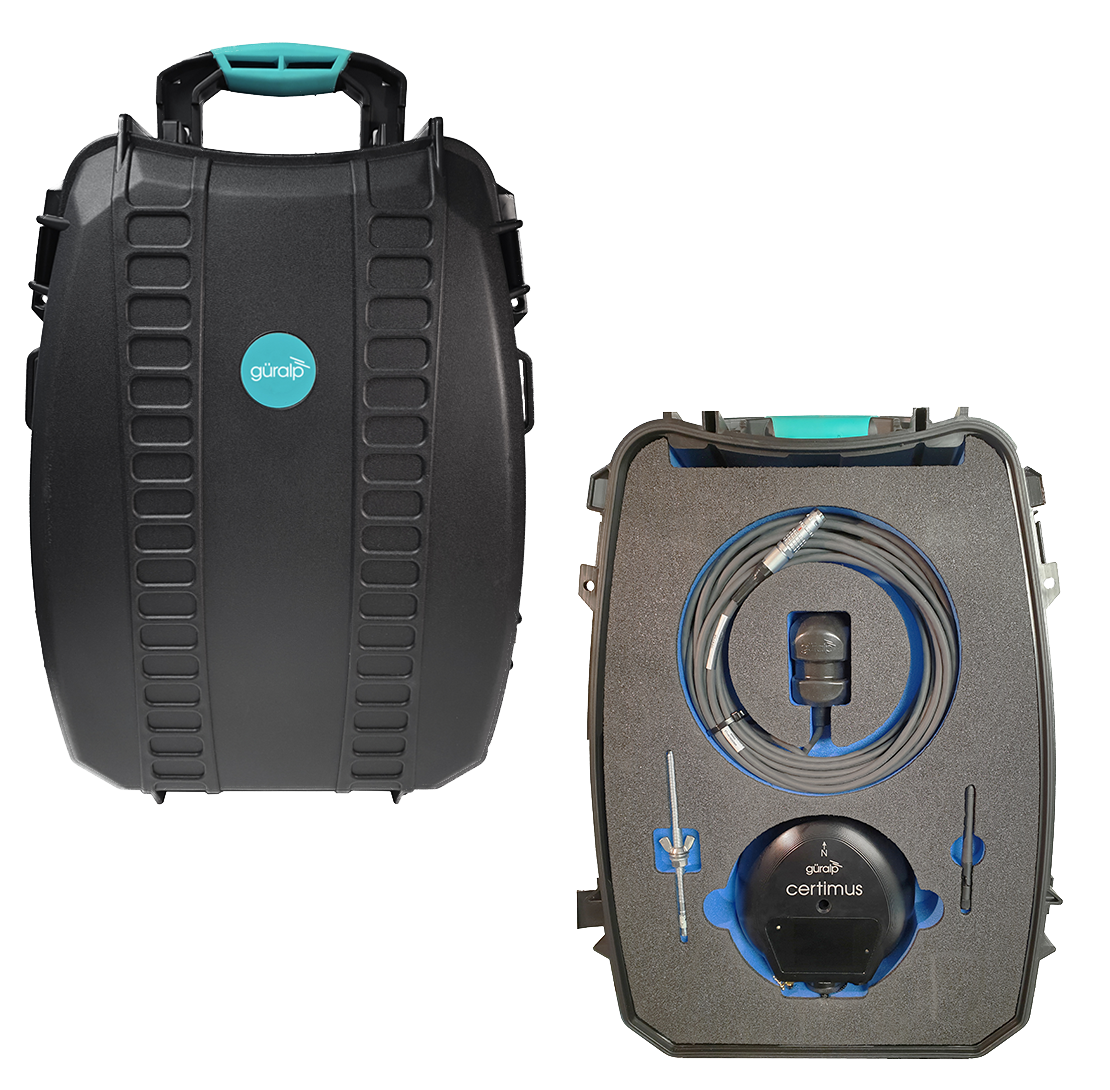

The rugged Certimus back-pack will protect Certimus during field deployments with additional space for accessories and documentation.
A STATION IN A KIT

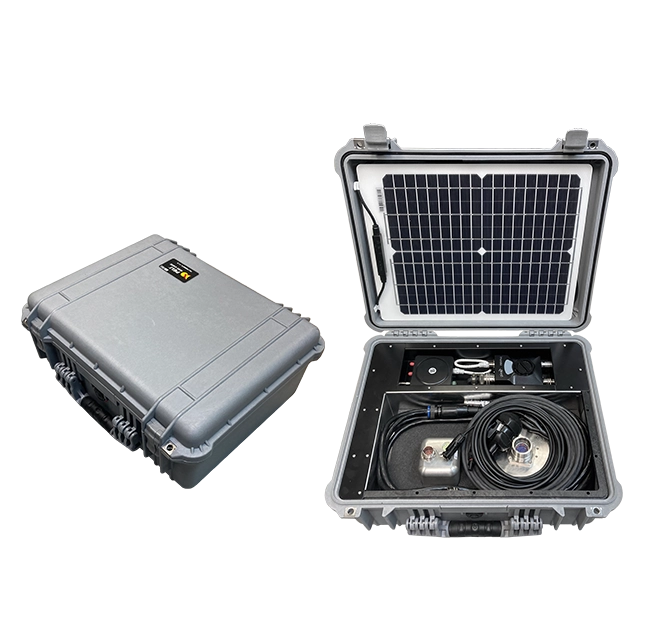

The Certimus is compatible with our Rapid Deployment Kit.
Everything you need to deploy and power a smart seismic station in a compact protective case.
The kit is fitted with a re-chargeable 400 Wh lithium battery module, two 20 W solar panels, a GNSS receiver, a modem and a modem aerial.
Everything you need to deploy and power a smart seismic station in a compact protective case.
The kit is fitted with a re-chargeable 400 Wh lithium battery module, two 20 W solar panels, a GNSS receiver, a modem and a modem aerial.
SPECIFICATIONS
Configuration / Topology
Triaxial orthogonal (ZNE)
Maximum frequency response bandwidth
120 s (0.0083 Hz) to 100 Hz
Remotely selectable long-period corner of 1 s, 10 s and 120 s
Remotely selectable long-period corner of 1 s, 10 s and 120 s
Output sensitivity
2000 V/ms-¹
Sensor dynamic range
149 dB
Self-noise
-173 dB at 10 seconds
ADC Converter
Delta-sigma
Output Format
32-bit
Dynamic Range
>142 dB at 100 samples per second
Data Recording Formats
miniSEED (metadata stored in Station XML and dataless SEED formats)
Flash Memory and Storage
Dual redundant 16 GB microSD cards, (1 fixed, 1 hot-swappable). Or select from 32 GB, 64 GB or 128 GB
Communication Technologies
Ethernet (10/100/1000BASE-T) with Power over Ethernet (PoE), Optional Wi-Fi
