CERTIS
CERTIS
COMPACT, LOW-POWER, MEDIUM-MOTION SEISMOMETER
Serial output
Includes instrument serial number, response and calibration parameters
120 s - 100 Hz
With a remotely adjustable long-period corner of 1 s, 10 s, 20 s, 30 s, 45 s, 60 s, 90 s 100 s or 120 s
Ultra-low-power < 250 mW*
Ideal for remote sites powered by battery or solar.
*Power performance may vary as a result of restricted semi-conductor availability

± 90° tilt range
No other seismometer is easier to install.
Analogue output
For plug-and-play deployment.

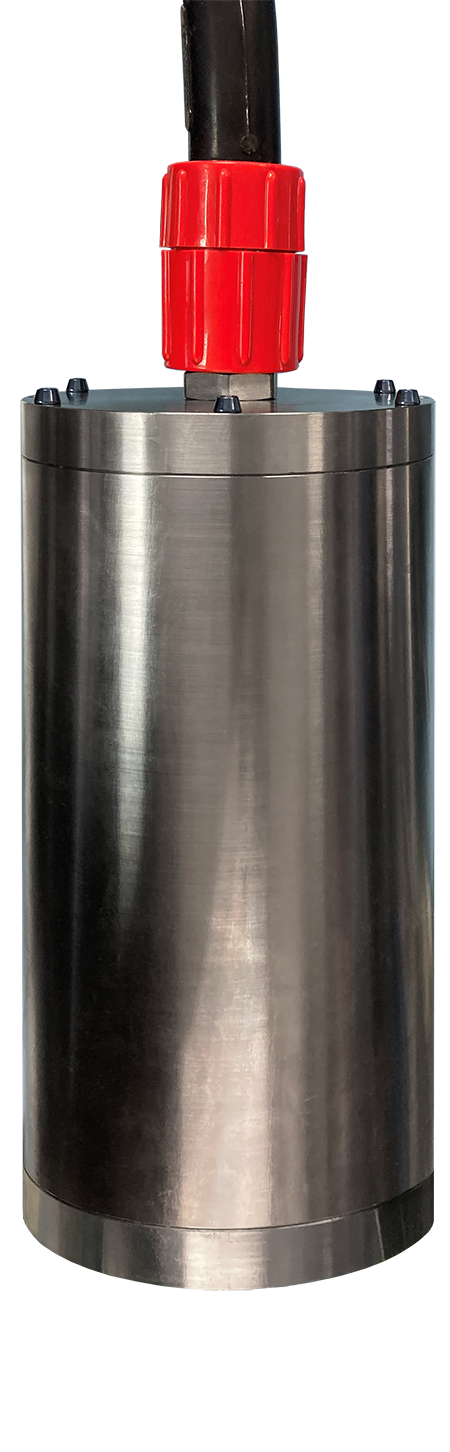

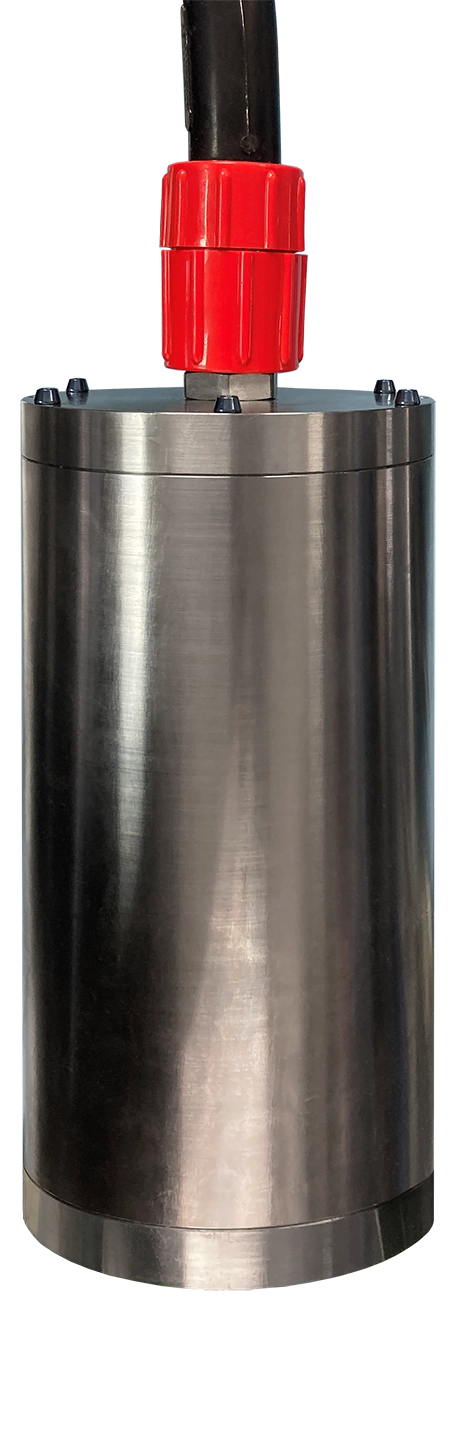

For surface and posthole installations
Suitable for depths to 10 metres
Features

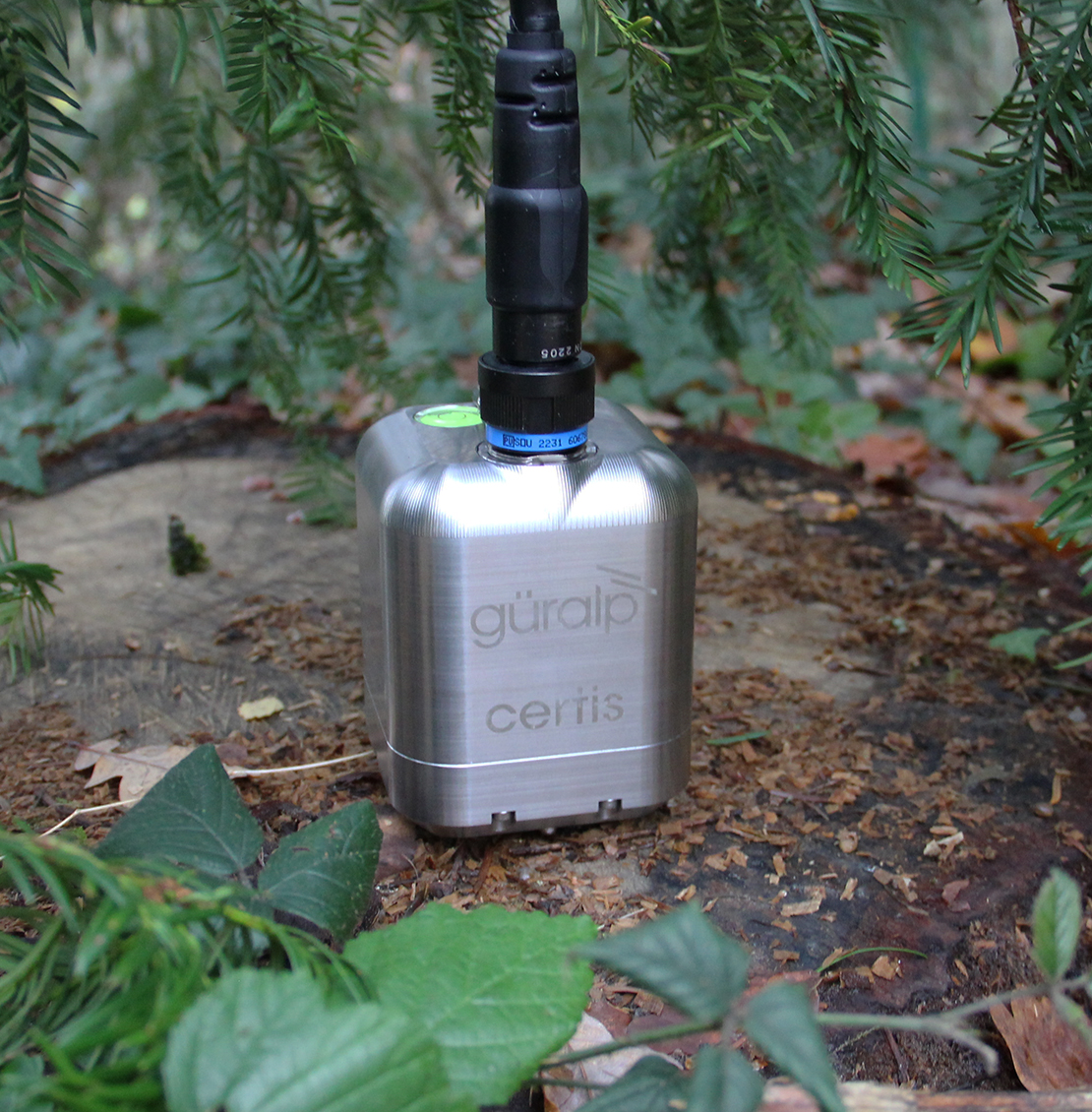

Easy installations
With an operational tilt range of ± 90°, the hole required for direct burial just got a lot smaller.
And, if you need to be up and running in the shortest timeframe, the long-period corner can be adjusted pre- or post-deployment* allowing you to match the response to the environment.
* when operated with a Minimus digitiser
And, if you need to be up and running in the shortest timeframe, the long-period corner can be adjusted pre- or post-deployment* allowing you to match the response to the environment.
* when operated with a Minimus digitiser
Instrument and data management made simple

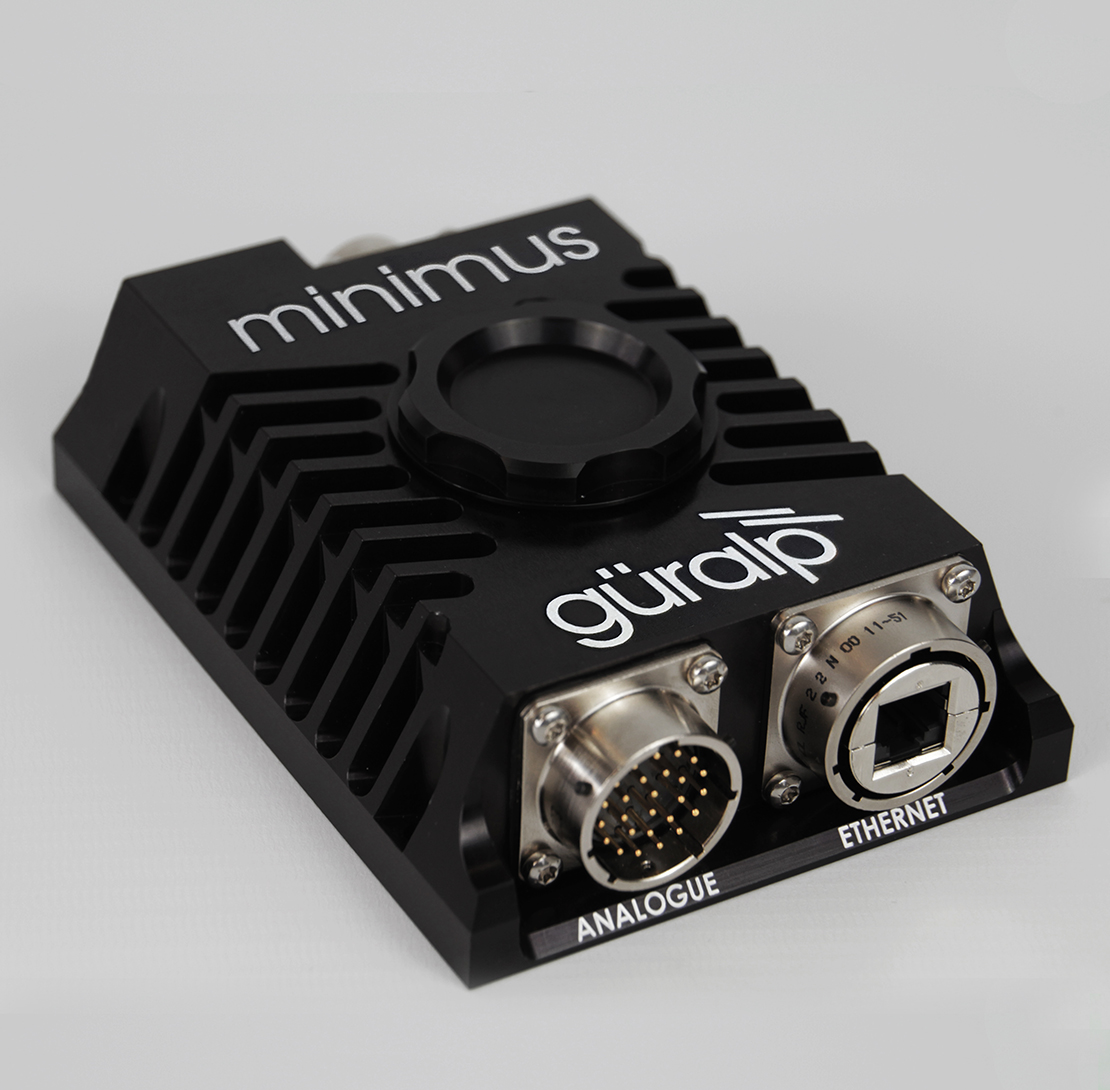

The ideal data acquisition partner for Certis is the Minimus which provides state-of-the-art communication capabilities including versatile data streaming and storage capabilities and industry standard triggering algorithms.
By pairing with a Minimus you also access Güralp Discovery, our sophisticated instrument and data management software platform.
Discovery gives you access to hardware State-of-Health; data viewing; data streaming and back fill capabilities; advanced data analysis tools; GNSS location; instrument response and calibration values.
Find out more about Discovery
By pairing with a Minimus you also access Güralp Discovery, our sophisticated instrument and data management software platform.
Discovery gives you access to hardware State-of-Health; data viewing; data streaming and back fill capabilities; advanced data analysis tools; GNSS location; instrument response and calibration values.
Find out more about Discovery

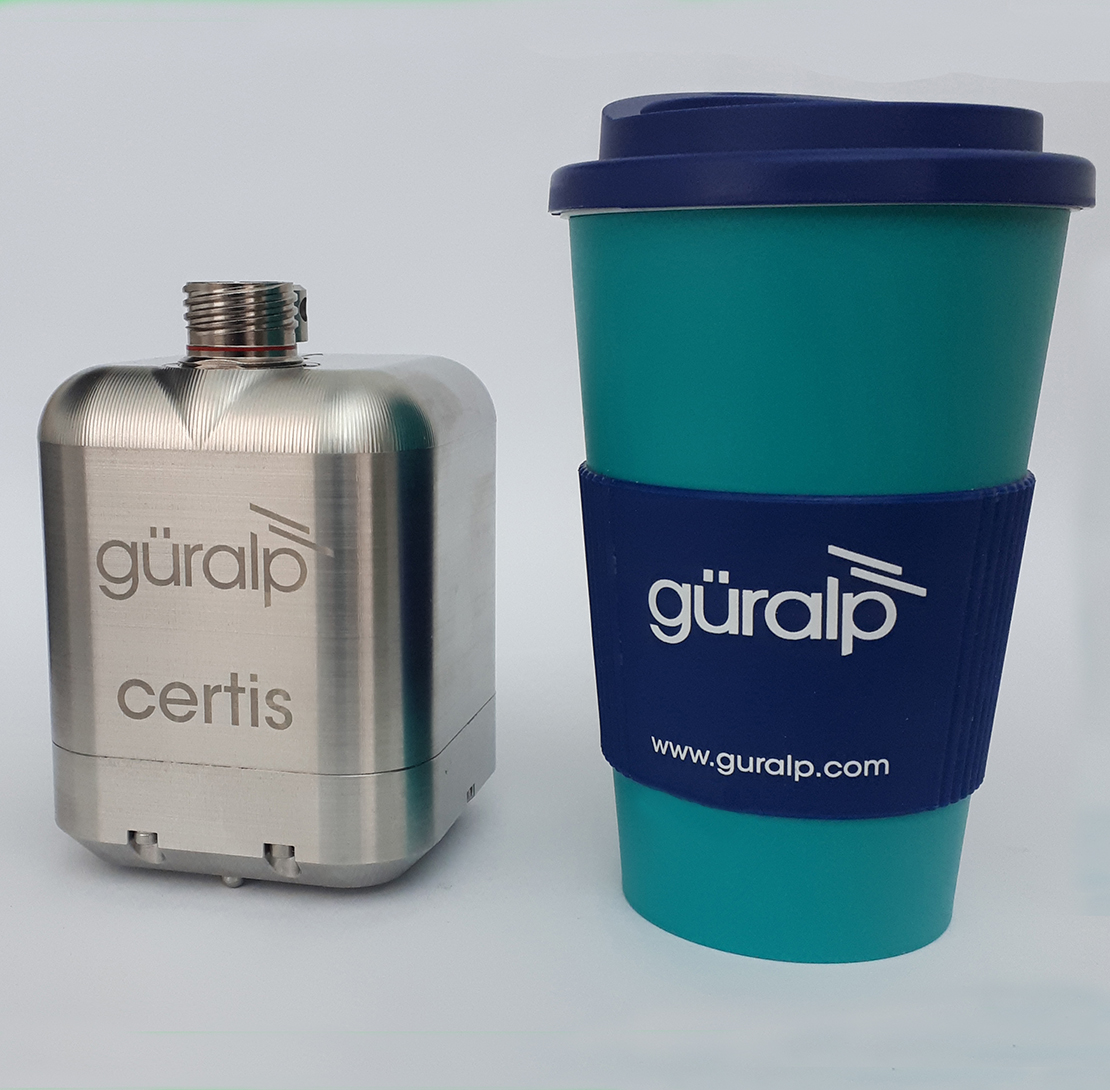

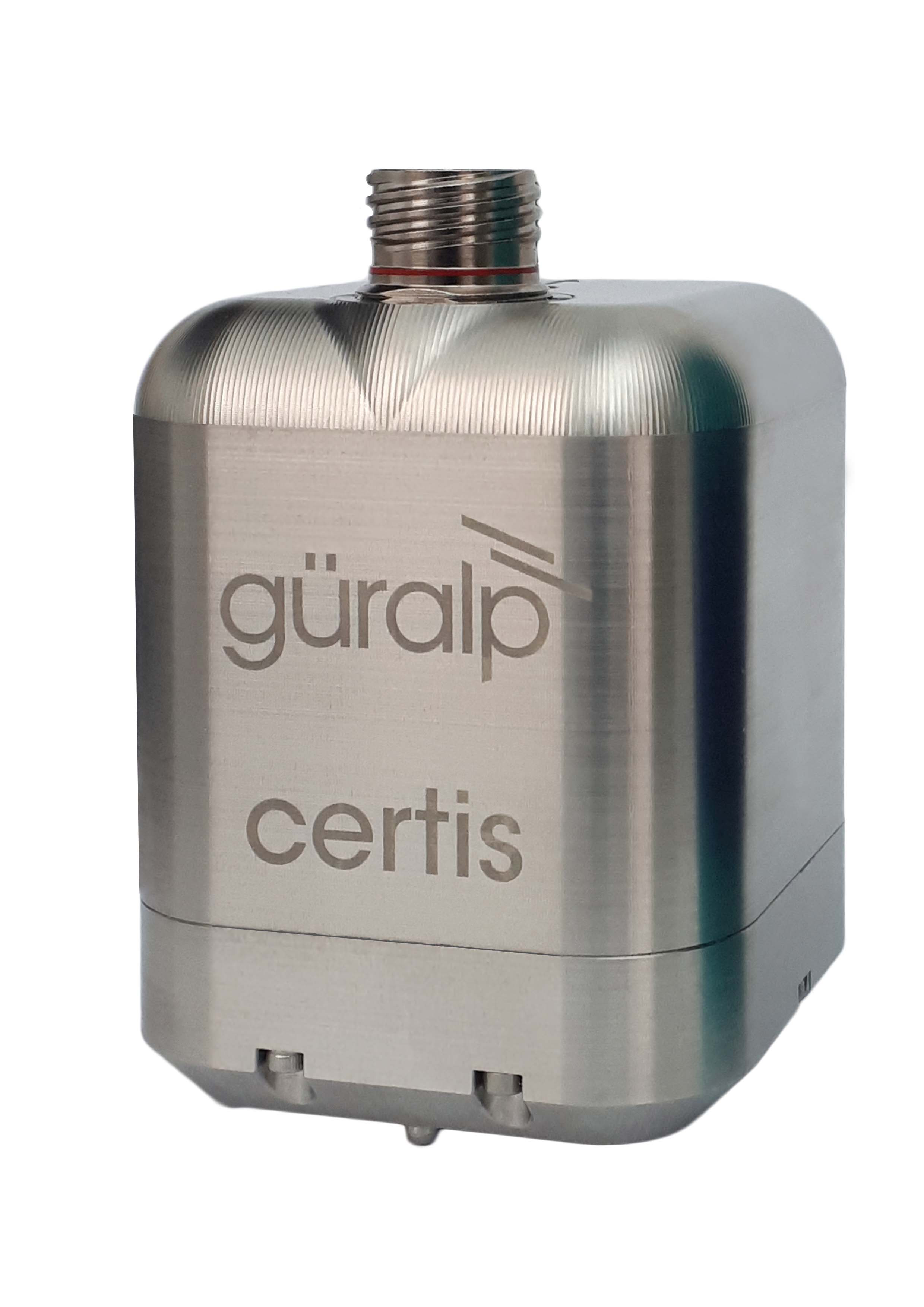

Small, compact and robust
Measuring just 112 mm tall and encased in an environmentally sealed stainless steel casing, Certis is very portable whilst capable of withstanding the harshest of environments.
An internal thermometer and a humidity sensor alert you to any moisture ingress.
An internal thermometer and a humidity sensor alert you to any moisture ingress.
SPECIFICATIONS
Configuration / Topology
Triaxial orthogonal (ZNE)
Maximum frequency response bandwidth
120 s (0.0083 Hz) to 100 Hz
Remotely selectable long-period corner of 1 s, 10 s, 30 s, 45 s, 60 s, 90 s, 100 s or 120 s
Remotely selectable long-period corner of 1 s, 10 s, 30 s, 45 s, 60 s, 90 s, 100 s or 120 s
Output sensitivity
1000 V/ms-¹
Sensor dynamic range
155 dB
Self-noise
-173 dB at 10 seconds
Operational tilt range
+/- 90 degrees
Cross axis rejection
> 65 dB
Linearity
> 95 dB
Lowest spurious resonance
> 450 Hz
Dimensions
80 mm × 80 mm × 112 mm high (including fixed feet to top of connector)
Weight
1.9 kg (disconnected)
